In Stock Hot Product
8WD4358-1XX

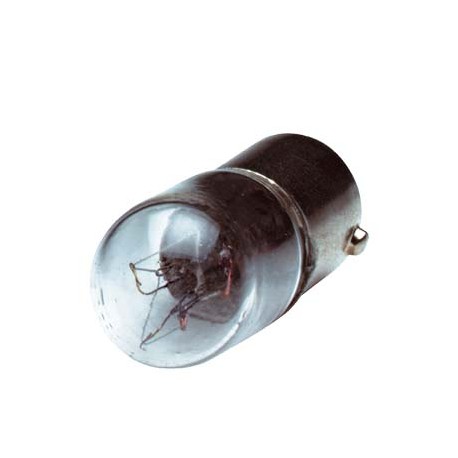

8WD4358-1XX SIEMENS incandescent lamp, 230 V AC, 5 W, Base BA 15d, accessory for signaling columns, with dia..
$0.00USD
4821 in stock
Key Specifications
:
EAN:4011209267121
UPC:754554402987
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209267121 |
| UPC | 754554402987 |
| ETIM | 5 |
| IDEA | 4 |
| width | 16 mm |
| UNSPSC | 14 |
| eClass | 9 |
| height | 42 mm |
| Group Code | R711 |
| Confirmation | |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| socket design | BA 15d |
| Commodity Code | 85392192 |
| Product family | 8WD44 signaling columns, 70 mm diameter |
| last modified: | 12/23/2020 |
| reference code | |
| Net Weight (kg) | 0,008 Kg |
| Colour (EF000007) | - |
| Country of origin | China |
| Marine / Shipping | other |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Function (EF000030) | - |
| Packaging Dimension | 16,00 x 36,00 x 16,00 |
| Product Description | incandescent lamp, 230 V AC, 5 W, Base BA 15d, accessory for signaling columns, with diameters 50 mm + 70 mm, (Packing unit 10 units) |
| product designation | Incandescent lamp |
| Lamp type (EF002423) | Incandescent lamp |
| type of light source | filament lamp |
| Minimum order quantity | 10 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| General Product Approval | EMC |
| Colour housing (EF000136) | - |
| Outer diameter (EF000015) | 70.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | P |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | P |
| ● 1 at AC at 50 Hz rated value | 230 V |
| ● 1 at AC at 60 Hz rated value | 230 V |
| Operating voltage at DC (EF008208) | ['-', '-'] |
| Degree of protection (IP) (EF005474) | - |
| ambient temperature during operation | -20 ... +50 °C |
| Article Number (Market Facing Number) | 8WD4358-1XX |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating voltage at AC 50 Hz (EF008206) | ['-', '-'] |
| Operating voltage at AC 60 Hz (EF008207) | ['-', '-'] |
| type of voltage of the operating voltage | AC |
| outer diameter of the signal column element | 70 mm |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| relative negative tolerance of the operating voltage | -10 % |
| relative positive tolerance of the operating voltage | 10 % |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityMarine / ShippingotherConfirmation | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
