8WD4240-0FA

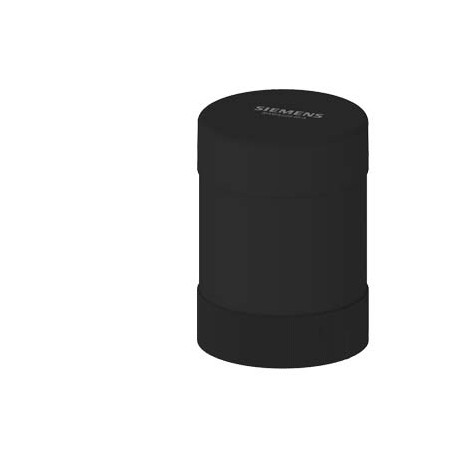

8WD4240-0FA SIEMENS Buzzer element, continuous tone or pulsating, adjustable, 85 dB, 115 V AC/DC, diameter 5..
$0.00USD
4455 in stock
Key Specifications
:VersionClassificationeClass627-37-12-37eClass7.127-37-12-37eClass827-37-12-37eClass927-37-12-37eClass9.127-37-12-37ETIM5EC001261ETIM6EC001261ETIM7EC001261ETIM8EC001261IDEA44766UNSPSC1439-12-15-34UNSPSC1539-12-15-34
EAN:4011209375215
UPC:754554486680
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-37eClass7.127-37-12-37eClass827-37-12-37eClass927-37-12-37eClass9.127-37-12-37ETIM5EC001261ETIM6EC001261ETIM7EC001261ETIM8EC001261IDEA44766UNSPSC1439-12-15-34UNSPSC1539-12-15-34 | |
| EAN | 4011209375215 |
| UPC | 754554486680 |
| ETIM | 5 |
| IDEA | 4 |
| color | black |
| width | 52 mm |
| ● 1 | 2.5 kHz |
| UNSPSC | 14 |
| eClass | 6 |
| height | 72 mm |
| material | PC |
| Group Code | R711 |
| Confirmation | |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85318070 |
| Product family | 8WD42 signaling columns, 50 mm diameter |
| last modified: | 12/23/2020 |
| loudness level | 85 dB |
| reference code | |
| tone frequency | |
| Net Weight (kg) | 0,066 Kg |
| fastening method | Bayonet |
| Colour (EF000007) | Black |
| Country of origin | Germany |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Function (EF000030) | Continuous tone/pulse tone |
| Loudness (EF000144) | 85 |
| Packaging Dimension | 55,00 x 76,00 x 55,00 |
| Product Description | Buzzer element, continuous tone or pulsating, adjustable, 85 dB, 115 V AC/DC, diameter 50 mm |
| product designation | Buzzer element |
| protection class IP | IP54 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC/DC / AC |
| type of acoustic signal | continuous tone / pulse tone |
| General Product Approval | EMC |
| consumed current maximum | 35 mA |
| Outer diameter (EF000015) | 50.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Tone adjustable (EF005920) | true |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | P |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | P |
| ● 1 at AC at 50 Hz rated value | 115 V |
| ● 1 at AC at 60 Hz rated value | 115 V |
| Operating voltage at DC (EF008208) | ['-', '-'] |
| tone frequency of alternating tone | 2.5 ... 2.5 kHz |
| Degree of protection (IP) (EF005474) | IP54 |
| ambient temperature during operation | -20 ... +50 °C |
| Article Number (Market Facing Number) | 8WD4240-0FA |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| service life of acoustic signal device | 5 000 h |
| Operating voltage at AC 50 Hz (EF008206) | ['-', '-'] |
| Operating voltage at AC 60 Hz (EF008207) | ['-', '-'] |
| type of voltage of the operating voltage | AC/DC |
| outer diameter of the signal column element | 50 mm |
| product function adjustable acoustic signal | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| relative negative tolerance of the operating voltage | -10 % |
| relative positive tolerance of the operating voltage | 10 % |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityotherConfirmation | General Product Approval |
