8WD4200-1AB

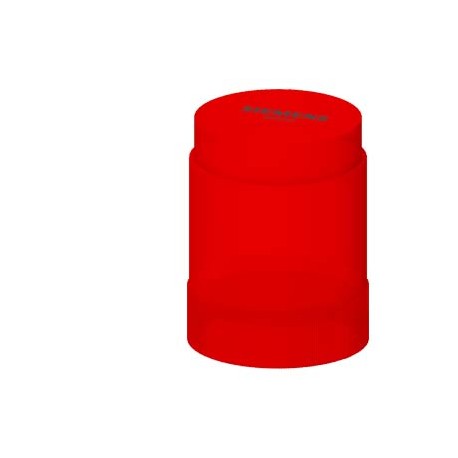

8WD4200-1AB SIEMENS Continuous light element, red, 12-230 V AC/DC, 50 mm diameter, base BA 15d without light..
$0.00USD
3036 in stock
Key Specifications
:VersionClassificationeClass627-37-12-20eClass7.127-37-12-20eClass827-37-12-20eClass927-37-12-20eClass9.127-37-12-20ETIM5EC000232ETIM6EC000232ETIM7EC000232ETIM8EC000232IDEA44766UNSPSC1439-12-15-34UNSPSC1539-12-15-34
EAN:4011209375369
UPC:754554485737
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-20eClass7.127-37-12-20eClass827-37-12-20eClass927-37-12-20eClass9.127-37-12-20ETIM5EC000232ETIM6EC000232ETIM7EC000232ETIM8EC000232IDEA44766UNSPSC1439-12-15-34UNSPSC1539-12-15-34 | |
| EAN | 4011209375369 |
| UPC | 754554485737 |
| ETIM | 5 |
| IDEA | 4 |
| color | red |
| width | 52 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 67 mm |
| material | PC |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/12/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| socket design | BA 15d |
| Commodity Code | 85318070 |
| Product family | 8WD42 signaling columns, 50 mm diameter |
| last modified: | 2/25/2021 |
| reference code | |
| Net Weight (kg) | 0,050 Kg |
| fastening method | Bayonet |
| Colour (EF000007) | Red |
| Country of origin | Germany |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Function (EF000030) | Continuous light |
| Packaging Dimension | 55,00 x 75,00 x 55,00 |
| Product Description | Continuous light element, red, 12-230 V AC/DC, 50 mm diameter, base BA 15d without light element |
| product designation | Continuous light element |
| protection class IP | IP54 |
| Lamp type (EF002423) | Incandescent lamp/LED |
| type of light source | filament lamp / LED |
| design of the product | without light source |
| ● at DC rated value | 12 ... 230 V |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC/DC |
| General Product Approval | EMC |
| Colour housing (EF000136) | Red |
| Outer diameter (EF000015) | 50.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | P |
| Package size unit of measure | MM |
| design of the optical signal | continuous light |
| ● according to IEC 81346-2 | P |
| product component light source | No |
| ● at AC at 50 Hz rated value | 12 ... 230 V |
| ● at AC at 60 Hz rated value | 12 ... 230 V |
| Operating voltage at DC (EF008208) | ['12', '230'] |
| Degree of protection (IP) (EF005474) | IP54 |
| ambient temperature during operation | -20 ... +60 °C |
| Article Number (Market Facing Number) | 8WD4200-1AB |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating voltage at AC 50 Hz (EF008206) | ['12', '230'] |
| Operating voltage at AC 60 Hz (EF008207) | ['12', '230'] |
| type of voltage of the operating voltage | AC/DC |
| outer diameter of the signal column element | 50 mm |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityotherConfirmation | General Product Approval |
