8WA1852

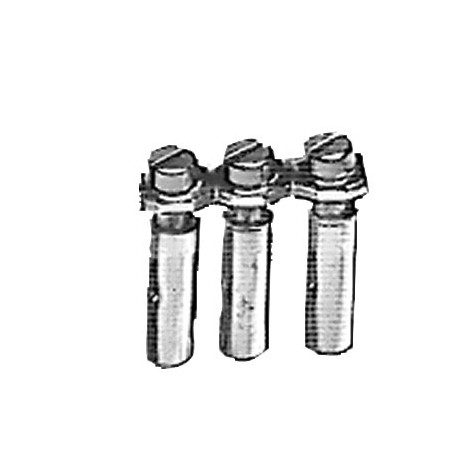

8WA1852 SIEMENS connection bar f. 4 terminals, size 4
$0.00USD
3649 in stock
Key Specifications
:
EAN:4011209161627
UPC:754554854243
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209161627 |
| UPC | 754554854243 |
| ETIM | 5 |
| Notes | Sucessor:8WH90206CE10 |
| color | miscellaneous |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 5 g |
| accessories | cross connector |
| Confirmation | |
| Date5/7/2022 | |
| Metal Factor | None |
| Product Group | 5567 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369001 |
| Product family | 8WA terminals |
| Net Weight (kg) | 0,005 Kg |
| contact spacing | 4 mm |
| Model (EF000010) | Transverse connector |
| fastening method | screwable |
| Colour (EF000007) | Other |
| Country of origin | Greece |
| LKZ_FDB/ CatalogID | LV10.2 |
| PLM Effective Date | Product phase-out since: 01.08.2021 |
| Packaging Quantity | 1 |
| product brand name | ALPHA |
| Packaging Dimension | 45,00 x 65,00 x 37,00 |
| Product Description | connection bar f. 4 terminals, size 4 |
| product designation | ALPHA FIX terminal blocks |
| Insulated (EF000019) | false |
| design of the product | Link rail |
| Minimum order quantity | 20 |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Modular spacing (EF000394) | 4.0 |
| Mounting method (EF000003) | Screwable |
| Rated current In (EF008250) | - |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| number of bridged terminals | 4 |
| product feature / insulated | No |
| Package size unit of measure | MM |
| With shock protection (EF008186) | false |
| product feature / touch protection | No |
| Number of bridged clamps (EF002550) | 4 |
| Article Number (Market Facing Number) | 8WA1852 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Region Specific PriceGroup / Headquarter Price Group | 12W / 1BT |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesotherConfirmationMiscellaneousMiscellaneousEnvironmental Confirmations | General Product Approval |
Product Description
Bonding plate for 4 terminals size 4 (** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 20 Units ** ). Manufactured to customer specifications. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
