8WA1825

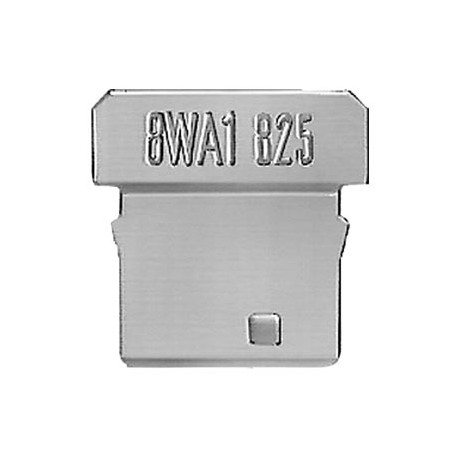

8WA1825 SIEMENS Insulation plate for terminals Sz. 2.5, 4 and 6
$0.00USD
4906 in stock
Key Specifications
:
EAN:4011209161450
UPC:754554224800
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209161450 |
| UPC | 754554224800 |
| ETIM | 5 |
| Notes | Sucessor:8WH90700AA00 |
| color | miscellaneous |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 0.2 g |
| Confirmation | |
| Date5/3/2022 | |
| Metal Factor | None |
| Product Group | 5567 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| Commodity Code | 85472000 |
| Product family | 8WA terminals |
| Net Weight (kg) | Not available |
| Colour (EF000007) | Other |
| Country of origin | Greece |
| LKZ_FDB/ CatalogID | LV10.2 |
| PLM Effective Date | Product phase-out since: 01.08.2021 |
| Packaging Quantity | 1 |
| Snap in (EF002551) | true |
| product brand name | ALPHA |
| Packaging Dimension | 85,00 x 130,00 x 20,00 |
| Product Description | Insulation plate for terminals Sz. 2.5, 4 and 6 |
| product designation | ALPHA FIX terminal blocks |
| Thickness (EF000125) | - |
| design of the product | Insulation plate |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| product feature / latching | Yes |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of end plate (EF006586) | false |
| Type of partition (EF006587) | true |
| Article Number (Market Facing Number) | 8WA1825 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| combustibility class according to UL 94 | Miscellaneous |
| mechanical accessories / end cover plate | No |
| mechanical accessories / intermediate plate | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 12W / 1BT |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | Other |
| General Product ApprovalDeclaration of ConformityTest CertificatesotherConfirmationMiscellaneousEnvironmental ConfirmationsMiscellaneous | General Product Approval |
Product Description
Separation disc for terminals size 2, 5, 4 and 6 ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Multipurpose Order 50 Units ** ). Manufactured to customer specifications. Non-Cancelable Non-
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
