8WA1011-1PG01

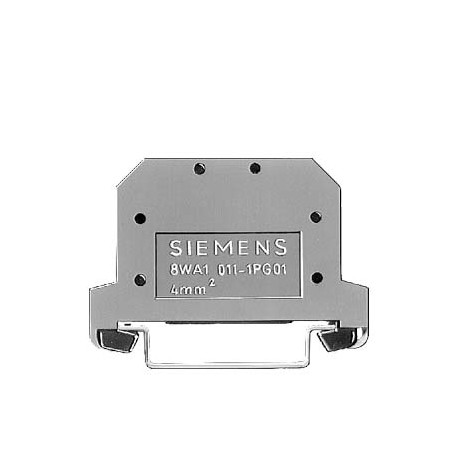

8WA1011-1PG01 SIEMENS PE terminal 1 screw terminal green-yellow, 7.2mm, Sz. 4
$0.00USD
4473 in stock
Key Specifications
:
EAN:4011209160477
UPC:754554224107
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209160477 |
| UPC | 754554224107 |
| ETIM | 5 |
| Notes | Sucessor:8WH10000CG07 |
| color | green-yellow |
| ● 1 | screw-type terminal |
| ● 2 | screw-type terminal |
| UNSPSC | 14 |
| eClass | 6 |
| length | 51 mm |
| Group Code | P310 |
| net weight | 22.4 g |
| ● maximum | 4 mm² |
| ● minimum | 0.5 N·m |
| Confirmation | |
| Metal Factor | None |
| Date5/13/2022 | |
| Product Group | 5565 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | 8WA terminals |
| Net Weight (kg) | 0,022 Kg |
| stripped length | 11 mm |
| fastening method | DIN rail 35 mm |
| Colour (EF000007) | Green/yellow |
| Country of origin | Greece |
| Length (EF001438) | 51.0 |
| LKZ_FDB/ CatalogID | LV10.2 |
| PLM Effective Date | Product phase-out since: 01.08.2021 |
| Packaging Quantity | 1 |
| product brand name | ALPHA |
| type of connection | |
| Packaging Dimension | 108,00 x 188,00 x 40,00 |
| Product Description | PE terminal 1 screw terminal green-yellow, 7.2mm, Sz. 4 |
| insulation material | thermoplastic |
| product designation | PE through-type terminal |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Declaration of Conformity |
| terminal contact spacing | 7.2 mm |
| number of terminal levels | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| position / of the terminal | lateral |
| Environmental Confirmations | |
| Number of levels (EF002659) | 1 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Connection position (EF008219) | Sideways |
| product feature / PEN function | No |
| Width/grid dimension (EF002522) | 7.2 |
| Operating temperature (EF002393) | ['-25', '55'] |
| PEN function possible (EF002544) | false |
| Closing plate required (EF002525) | false |
| material / of the insulating body | Thermoplastic |
| Material insulation body (EF007543) | Thermoplastic |
| Article Number (Market Facing Number) | 8WA1011-1PG01 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| ● with core end processing / maximum | 4 mm² |
| combustibility class according to UL 94 | V2 |
| height / with lowest-profile installation | 30 mm |
| ● without core end processing / maximum | 4 mm² |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Type of electrical connection 2 (EF002527) | Screw connection |
| connectable conductor cross-section / solid | |
| tightening torque / with screw-type terminals | |
| Number of clamp positions per level (EF002660) | 1 |
| connectable conductor cross-section / stranded | |
| number of terminal points / per terminal level | 1 |
| product component / required / end cover plate | No |
| Height at lowest possible mounting height (EF002523) | 30.0 |
| Region Specific PriceGroup / Headquarter Price Group | 12W / 1BT |
| connectable conductor cross-section / finely stranded | |
| Connectable conductor cross section solid-core (EF007337) | - |
| Connectable conductor cross section multi-wired (EF007343) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V2 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | - |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | - |
| General Product ApprovalDeclaration of ConformityTest CertificatesotherConfirmationMiscellaneousMiscellaneousotherEnvironmental Confirmations | General Product Approval |
Product Description
PE Terminal, 1 connection per green-yellow screw, 7.2mm, size 4 (** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 50 Units ** ). Cancelations and returns limited. Consult conditio
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
