8WA1011-1EE00

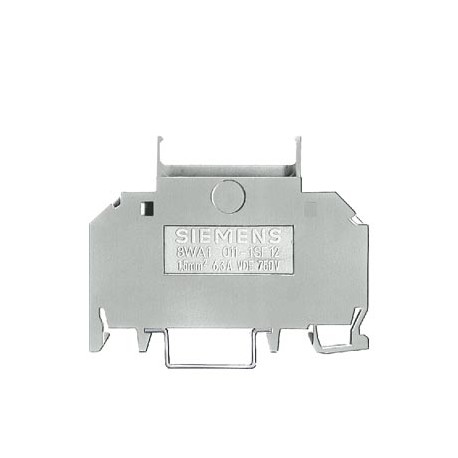

8WA1011-1EE00 SIEMENS terminal for components Screw terminal on both sides 10mm, Size 1.5
$0.00USD
3794 in stock
Key Specifications
:
EAN:4011209160293
UPC:754554224039
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209160293 |
| UPC | 754554224039 |
| ETIM | 5 |
| Notes | Sucessor:8WH10205LF00 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| ● maximum | 1.5 mm² |
| ● minimum | 1.5 mm² |
| Confirmation | |
| Metal Factor | None |
| Date5/11/2022 | |
| Product Group | 5565 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | 8WA terminals |
| Net Weight (kg) | 0,020 Kg |
| contact spacing | 10 mm |
| number of poles | 1 |
| Country of origin | Greece |
| LKZ_FDB/ CatalogID | LV10.2 |
| PLM Effective Date | Product phase-out since: 01.08.2021 |
| Packaging Quantity | 1 |
| product brand name | ALPHA |
| Packaging Dimension | 69,00 x 69,00 x 55,00 |
| Product Description | terminal for components Screw terminal on both sides 10mm, Size 1.5 |
| Tackable (EF006169) | true |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Strip length (EF006824) | - |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 500 |
| Export Control Regulations | AL : N / ECCN : N |
| Modular spacing (EF000394) | 10.0 |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| type of electrical connection | screw-type terminals |
| operating voltage / rated value | 500 V |
| Article Number (Market Facing Number) | 8WA1011-1EE00 |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● with core end processing / maximum | 1.5 mm² |
| ● with core end processing / minimum | 1.5 mm² |
| ● without core end processing / maximum | 1.5 mm² |
| ● without core end processing / minimum | 1.5 mm² |
| connectable conductor cross-section / solid | |
| connectable conductor cross-section / stranded | |
| Region Specific PriceGroup / Headquarter Price Group | 12W / 1BT |
| connectable conductor cross-section / finely stranded | |
| Connectable conductor cross section solid-core (EF007337) | ['1.5', '1.5'] |
| Connectable conductor cross section multi-wired (EF007343) | ['1.5', '1.5'] |
| product feature / of the enclosure / housing can be lined up | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['1.5', '1.5'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['1.5', '1.5'] |
| General Product ApprovalDeclaration of ConformityTest CertificatesotherConfirmationMiscellaneousEnvironmental ConfirmationsMiscellaneous | General Product Approval |
Product Description
Terminal for components, screw connection on both sides 10mm, size 1.5 (** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 5 Units ** ). Cancelations and returns limited. Consult co
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
