8US1941-2AA01

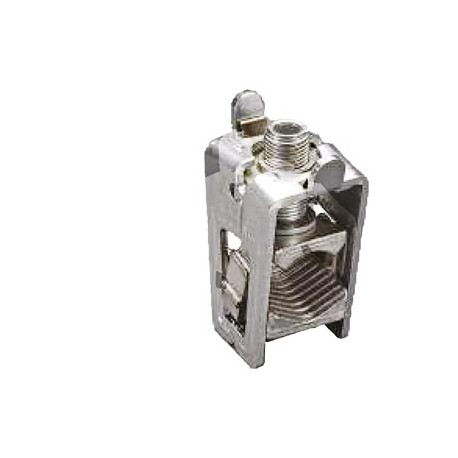

8US1941-2AA01 SIEMENS Busbar system, accessories Busbar center-to-center spacing 40, 60 mm Connecting termin..
$0.00USD
4532 in stock
Key Specifications
:Confirmation
EAN:4011209346949
UPC:754554864365
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209346949 |
| UPC | 754554864365 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 70 mm |
| width | 38 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 51 mm |
| Group Code | P360 |
| net weight | 307 g |
| accessories | connection terminal 5/10 mm, 95 to 185 |
| Confirmation | Miscellaneous |
| Metal Factor | None |
| Date5/17/2022 | |
| Product Group | 5888 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | Busbar systems |
| Net Weight (kg) | 0,298 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 96,00 x 99,00 x 45,00 |
| Product Description | Busbar system, accessories Connecting terminal 95...185mm2 Rail section 20, 25, 30 x 5, 10mm and for TT-profile |
| product designation | Connecting terminal |
| design of the product | Accessories |
| Minimum order quantity | 6 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| installation or assembly note | Suitable for aluminum conductors. For use of aluminum conductors, follow the maintenance instructions. |
| Article Number (Market Facing Number) | 8US1941-2AA01 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | Other |
| operating voltage / at AC / rated value | 690 V |
| operational current / at AC / rated value | 300 A |
| Region Specific PriceGroup / Headquarter Price Group | 14O / 1CU |
| operational current / according to UL 508 / rated value | 310 A |
| Compliance with the substance restrictions according to RoHS directive | Given |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| type of connectable conductor cross-sections / for copper conductor / stranded | 95 to 185 mm² circular conductor, sector-shaped conductor, stranded |
| General Product ApprovalConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformitySpecial Test CertificateMiscellaneousotherConfirmationMiscellaneous | General Product Approval |
