8US1213-4AH04

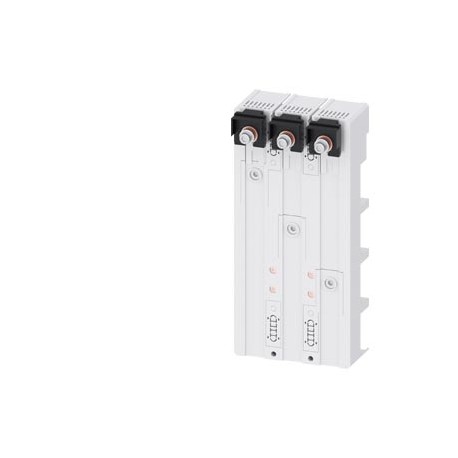

8US1213-4AH04 SIEMENS Device adapter MCCB, 3-pole, 590 A Busbar center-to-center spacing 60 mm for 3VA13/14/..
$0.00USD
3949 in stock
Key Specifications
:Confirmation
EAN:4001869508108
UPC:804766341540
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869508108 |
| UPC | 804766341540 |
| ETIM | 5 |
| depth | 35 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 300 mm |
| Group Code | P360 |
| net weight | 2 500 g |
| ● minimum | 5 mm |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | None |
| Product Group | 5888 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Busbar systems |
| Net Weight (kg) | 2,603 Kg |
| Country of origin | Germany |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 140,00 x 300,00 x 70,00 |
| Product Description | Device adapter MCCB, 3-pole, 590 A Busbar center-to-center spacing 60 mm for 3VA13/14/53/54/23/24/63/64 mm Contacting elements 300x140 mm for the adapter are provided |
| product designation | Device adapter |
| design of the product | Accessories |
| width / of the adapter | 140 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| Declaration of Conformity | Test Certificates |
| thickness / of the busbar | |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| type of electrical connection | Tubular contacts |
| busbar center-to-center spacing | 60 mm |
| Article Number (Market Facing Number) | 8US1213-4AH04 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | Other |
| operational current / at AC / rated value | 590 A |
| Region Specific PriceGroup / Headquarter Price Group | 14O / 1CU |
| Compliance with the substance restrictions according to RoHS directive | Since: 14.03.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformitySpecial Test CertificateMiscellaneousMarine / ShippingotherConfirmationMiscellaneous | General Product Approval |
