8US1213-4AH00

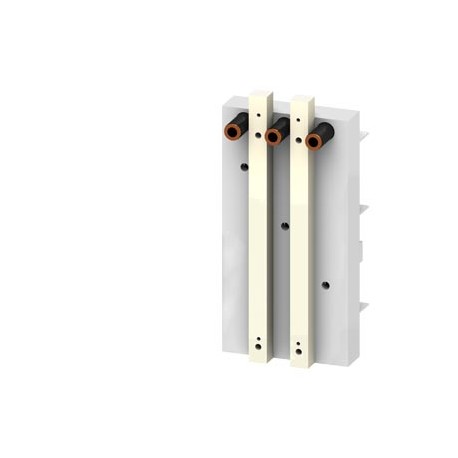

8US1213-4AH00 SIEMENS busbar adapter 60 mm SYS. UL 508 Busbar system 60 mm Bar thickness: TT profile UL rati..
$0.00USD
3192 in stock
Key Specifications
:Confirmation
EAN:4011209682900
UPC:754554942407
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209682900 |
| UPC | 754554942407 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 88 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 295 mm |
| Group Code | P360 |
| net weight | 2 466 g |
| ● minimum | 5 mm |
| Date5/9/2022 | |
| Metal Factor | L-P----- |
| Product Group | 5888 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Busbar systems |
| Net Weight (kg) | 2,466 Kg |
| Country of origin | Germany |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 147,00 x 306,00 x 106,00 |
| Product Description | busbar adapter 60 mm SYS. UL 508 Busbar system 60 mm Bar thickness: TT profile UL rating 240-600V/540A Can be used in spring circuits for 3VL circuit breaker with pipe contacting for cable outlet top/bottom Adapter length 296 mm Adapter width 140 mm for VL400 UL, JG-FRAME for VL400X UL, LG-FRAME |
| product designation | Device adapter |
| design of the product | Accessories |
| width / of the adapter | 140 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| thickness / of the busbar | |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| type of electrical connection | Tubular contacts |
| busbar center-to-center spacing | 60 mm |
| Article Number (Market Facing Number) | 8US1213-4AH00 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | Other |
| operational current / at AC / rated value | 400 A |
| Region Specific PriceGroup / Headquarter Price Group | 14O / 1CU |
| Compliance with the substance restrictions according to RoHS directive | Since: 23.02.2007 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationGeneral Product ApprovalDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformitySpecial Test CertificateMiscellaneousMarine / ShippingotherConfirmationMiscellaneous | General Product Approval |
