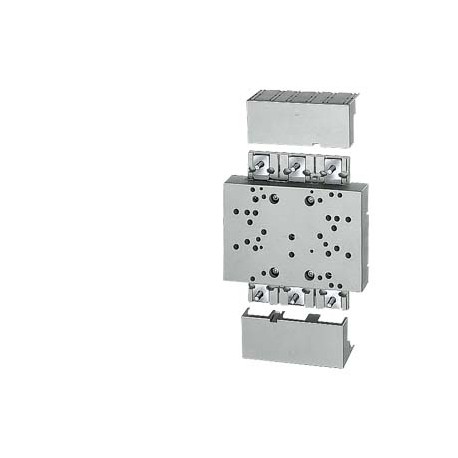

8US1210-4AG00
8US1210-4AG00 SIEMENS Busbar system Busbar center-to-center spacing 60 mm Device adapter, Width: 250 mm Bar ..
$0.00USD
3456 in stock
Key Specifications
:
EAN:4011209125445
UPC:754554472003
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209125445 |
| UPC | 754554472003 |
| ETIM | 5 |
| depth | 63 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 300 mm |
| Group Code | P360 |
| net weight | 2 868 g |
| ● minimum | 5 mm |
| Confirmation | |
| Date5/5/2022 | |
| Metal Factor | L-P----- |
| Miscellaneous | |
| Product Group | 5888 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Busbar systems |
| Net Weight (kg) | 2,888 Kg |
| Country of origin | Germany |
| Test Certificates | Marine / Shipping |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 266,00 x 330,00 x 86,00 |
| Product Description | Busbar system Busbar center-to-center spacing 60 mm Device adapter, Width: 250 mm Bar thickness: 5.10 mm+TT profile for switchgear up to 630 A 3NP52/53/54 |
| product designation | Device adapter |
| design of the product | Accessories |
| width / of the adapter | 140 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Special Test Certificate | Miscellaneous |
| thickness / of the busbar | |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| busbar center-to-center spacing | 60 mm |
| Article Number (Market Facing Number) | 8US1210-4AG00 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | Other |
| operational current / at AC / rated value | 630 A |
| Region Specific PriceGroup / Headquarter Price Group | 14O / 1CU |
| Compliance with the substance restrictions according to RoHS directive | Given |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingotherSpecial Test CertificateMiscellaneousConfirmationotherMiscellaneous | General Product Approval |
Product Description
Busbar adapter system, 250mm wide busbar adapter for connection units up to 630A, (3KA55/57, 3KE42/43, 3KL55/57, 3NP52/53) 60mm system, 5+10mm plate thickness, no connection conductor
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
