8UD1841-2AF05

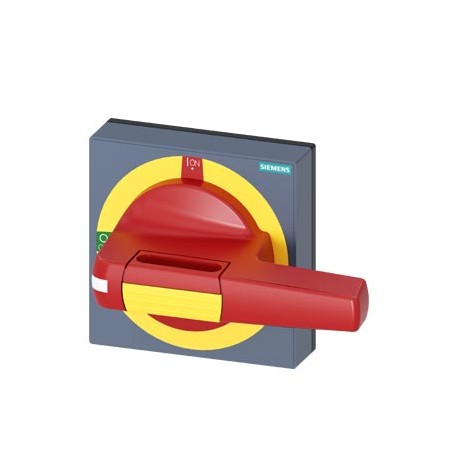

8UD1841-2AF05 SIEMENS handle with masking plate EMERGENCY-STOP size 100 x 100, for shaft 8 x 8, test-0-I han..
$0.00USD
4934 in stock
Key Specifications
:
EAN:4001869525372
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869525372 |
| UPC | Not available |
| ETIM | 5 |
| depth | 105 mm |
| width | 195 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 198 mm |
| Group Code | P360 |
| net weight | 236 g |
| accessories | Handle with masking frame |
| Date5/5/2022 | |
| Metal Factor | None |
| Miscellaneous | |
| Product Group | 5378 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,646 Kg |
| design of handle | Red-yellow |
| length of handle | 100 mm |
| Country of origin | Germany |
| product component | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 195,00 x 198,00 x 105,00 |
| Product Description | handle with masking plate EMERGENCY-STOP size 100 x 100, for shaft 8 x 8, test-0-I handle size 100mm accessory for 3KD size 3 3KF size 2 and 3 |
| product description | without lighting |
| product designation | handle with masking plate |
| protection class IP | IP65 |
| ● extension shaft | No |
| design of the product | EMERGENCY OFF |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| product feature / lockable | Yes |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / interlock | Yes |
| Package size unit of measure | MM |
| design of the door lock system | Door interlocking |
| Article Number (Market Facing Number) | 8UD1841-2AF05 |
| ● handle for emergency-OFF function | Yes |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Type of accessory/spare part (EF000215) | Other |
| display version / for switch position indicator | test-0-I |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| size format / of the masking frame / of door-coupling rotary operating mechanism | 100x 100 mm |
| size of cross-section / of the shaft / of door-coupling rotary operating mechanism | 8x8 mm |
| General Product ApprovalDeclaration of ConformityMarine / ShippingUK Declaration of ConformityotherMiscellaneous | General Product Approval |
Product Description
EMERGENCY LEVER TAM 100X100,FOR SHAFT 10X10, TEST - 0 - I HANDLE COMPLETE TAM 100MM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
