8UD1771-2AD01

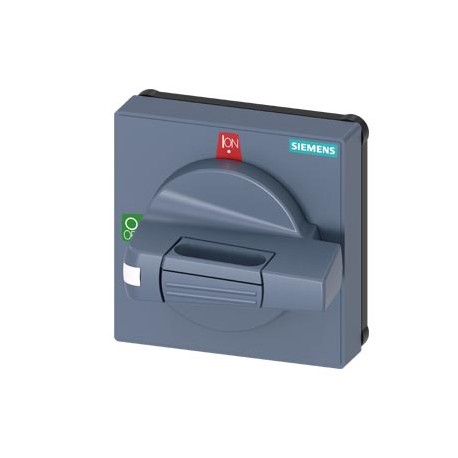

8UD1771-2AD01 SIEMENS Handle with masking frame standard Size 75x 75, for shaft 6x6 and 8x 8, 0-I, Handle si..
$0.00USD
4903 in stock
Key Specifications
:
EAN:4001869520681
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869520681 |
| UPC | Not available |
| ETIM | 5 |
| depth | 80 mm |
| width | 84 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 84 mm |
| Group Code | P360 |
| net weight | 140 g |
| accessories | Handle with masking frame |
| Date5/7/2022 | |
| Metal Factor | None |
| Product Group | 5378 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts |
| Net Weight (kg) | 0,172 Kg |
| design of handle | Gray |
| length of handle | 45 mm |
| Country of origin | Germany |
| Marine / Shipping | other |
| product component | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 70,00 x 75,00 x 80,00 |
| Product Description | Handle with masking frame standard Size 75x 75, for shaft 6x6 and 8x 8, 0-I, Handle size 45 mm Accessory for 3KD size 1 and 2, 3KF size 1, 3LD5 UL |
| product description | without lighting |
| product designation | handle with masking plate |
| protection class IP | IP65 |
| ● extension shaft | No |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| product feature / lockable | Yes |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / interlock | Yes |
| Package size unit of measure | MM |
| design of the door lock system | Door interlocking |
| Article Number (Market Facing Number) | 8UD1771-2AD01 |
| ● handle for emergency-OFF function | No |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Type of accessory/spare part (EF000215) | Other |
| display version / for switch position indicator | 0-I |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| size format / of the masking frame / of door-coupling rotary operating mechanism | 75x 75 mm |
| size of cross-section / of the shaft / of door-coupling rotary operating mechanism | 8x8 mm |
| General Product ApprovalDeclaration of ConformityUK Declaration of ConformityMarine / ShippingotherMiscellaneous | General Product Approval |
Product Description
ACCESSORY FOR 3KD TAM. 1 AND 2 HANDLE WITH PANEL P. ACCTO. GIRAT. DOOR 8UD1 STANDARD WITHOUT AXLE OR COUPLING SIZE 75X75, AXIS 8X8 INSCRIPTION: 0 - I, HANDLE SIZE 7. Cancelations and returns limited.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
