8UD1171-2AD15

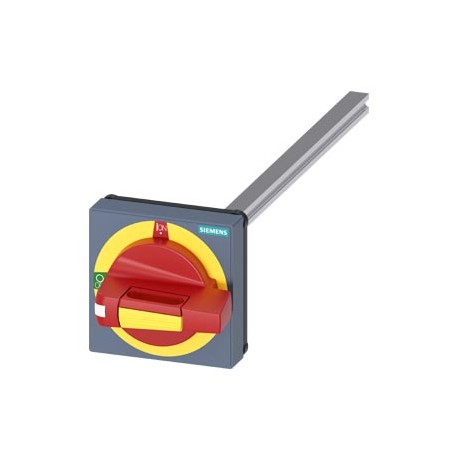

8UD1171-2AD15 SIEMENS Door-coupling rotary operating mechanism Emergency switching-off without tolerance com..
$0.00USD
3878 in stock
Key Specifications
:
EAN:4001869520650
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869520650 |
| UPC | Not available |
| ETIM | 5 |
| depth | 445 mm |
| width | 88 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 105 mm |
| Group Code | P360 |
| net weight | 622 g |
| accessories | Door-coupling rotary operating mechanism |
| Date5/3/2022 | |
| Metal Factor | None |
| Product Group | 5378 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts |
| Net Weight (kg) | 0,450 Kg |
| design of handle | Red-yellow |
| length of handle | 45 mm |
| Country of origin | Germany |
| product component | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 70,00 x 75,00 x 300,00 |
| Product Description | Door-coupling rotary operating mechanism Emergency switching-off without tolerance compensation Size 75x 75, Shaft 8x 8, 300 mm, 0-I, Complete unit Handle size 45 mm Accessory for 3KD size 1 and 2, 3KF size 1 |
| product description | size 100x100 mm, shaft 8 x8 mm |
| protection class IP | IP65 |
| ● extension shaft | Yes |
| design of the product | EMERGENCY OFF without tolerance compensation |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| product feature / lockable | Yes |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / interlock | Yes |
| Package size unit of measure | MM |
| design of the door lock system | Door interlocking |
| Article Number (Market Facing Number) | 8UD1171-2AD15 |
| ● handle for emergency-OFF function | Yes |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Type of accessory/spare part (EF000215) | Other |
| display version / for switch position indicator | 0-I |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL |
| length of shaft / of door-coupling rotary operating mechanism | 300 mm |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| size format / of the masking frame / of door-coupling rotary operating mechanism | 75x 75 mm |
| size of cross-section / of the shaft / of door-coupling rotary operating mechanism | 8x8 mm |
| General Product ApprovalDeclaration of ConformityMarine / ShippingotherUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
ACCESSORY FOR 3KD TAM. 1 AND 2 GIR DRIVE. DOOR COMPLETE UNIT EMERGENCY STOP WITHOUT TOLERANCE COMPENSATION SIZE 75X75, AXIS 8X8, 300MM INSCRIPTION: 0 - I, HANDLE SIZE 7. Cancelations and returns limit
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
