8PQ6000-3BA77

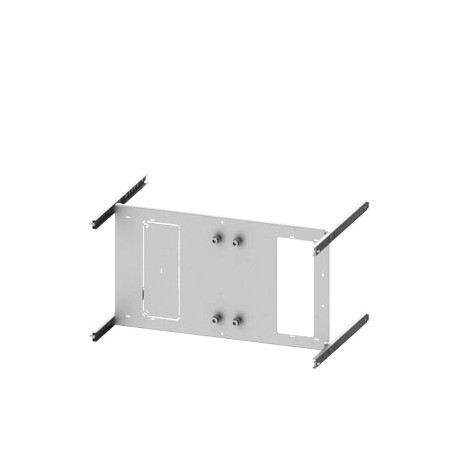

8PQ6000-3BA77 SIEMENS SIVACON S4 mounting plate 3NP1163 (NH3 up to 630A), H: 300mm W: 600mm
$0.00USD
4496 in stock
Key Specifications
:
EAN:4042948183311
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042948183311 |
| UPC | Not available |
| ETIM | 5 |
| color | miscellaneous |
| depth | 400 mm |
| width | 600 mm |
| eClass | 6 |
| height | 300 mm |
| material | metal |
| Group Code | P310 |
| net weight | 3 kg |
| Confirmation | |
| Date5/2/2022 | |
| Metal Factor | None |
| Product Group | 3778 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | 3NP1 fuse switch disconnectors |
| Net Weight (kg) | 3,280 Kg |
| Depth (EF000049) | 400.0 |
| Model (EF000010) | Other |
| Width (EF000008) | 600.0 |
| Colour (EF000007) | Other |
| Country of origin | Germany |
| Height (EF000040) | 300.0 |
| LKZ_FDB/ CatalogID | LV56 |
| Packaging Quantity | 1 |
| product brand name | SIVACON S4 |
| Material (EF002169) | Steel |
| Packaging Dimension | 305,00 x 610,00 x 60,00 |
| Product Description | SIVACON S4 mounting plate 3NP1163 (NH3 up to 630A), H: 300mm W: 600mm |
| product designation | 3NP1 assembly kit |
| EMC-version (EF001062) | - |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface finishing (EF006569) | Other |
| UK Declaration of Conformity | |
| Version as glazed door (EF006966) | - |
| Degree of protection (IP) (EF005474) | Other |
| Article Number (Market Facing Number) | 8PQ6000-3BA77 |
| Degree of protection (NEMA) (EF011959) | Other |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Region Specific PriceGroup / Headquarter Price Group | 193 / 1DR |
| Version as door for disconnecting switch interlocking (EF006967) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 23.06.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousMiscellaneousDeclaration of ConformityotherUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
SIVACON S4 EBS SENTRON 3NP INTERR. 3NP1163 POS. HORIZONTAL MOUNT FIXED MOUNT NO. SWITCHES 1 HEIGHT 300MM WIDTH 600MM. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
