8PQ5000-4BA31

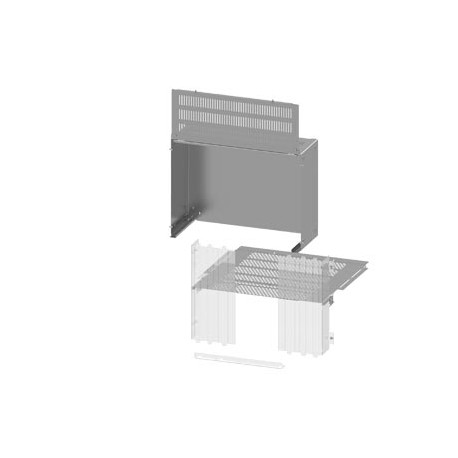

8PQ5000-4BA31 SIEMENS SIVACON S4 separation 3WA FS I, MBB top W: 600mm D: 800mm
$0.00USD
4074 in stock
Key Specifications
:Miscellaneous
EAN:4042948188835
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Miscellaneous | |
| EAN | 4042948188835 |
| UPC | Not available |
| ETIM | 5 |
| color | miscellaneous |
| depth | 800 mm |
| width | 600 mm |
| design | assembly kit |
| eClass | 6 |
| height | 1 225 mm |
| material | Metal / plastic |
| ● lock | No |
| Group Code | P310 |
| Confirmation | |
| Date5/5/2022 | |
| Metal Factor | None |
| ● shape 2a | Yes |
| ● shape 2b | Yes |
| ● shape 3a | Yes |
| ● shape 3b | Yes |
| ● shape 4a | Yes |
| ● shape 4b | Yes |
| Product Group | 3778 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Main busbar at top |
| Net Weight (kg) | 11,260 Kg |
| ● cable entry | No |
| Depth (EF000049) | - |
| Model (EF000010) | - |
| Width (EF000008) | - |
| Colour (EF000007) | - |
| Country of origin | Germany |
| Height (EF000040) | - |
| product component | |
| LKZ_FDB/ CatalogID | LV56 |
| Packaging Quantity | 1 |
| Material (EF002169) | - |
| Packaging Dimension | 540,00 x 620,00 x 100,00 |
| Product Description | SIVACON S4 separation 3WA FS I, MBB top W: 600mm D: 800mm |
| product designation | separation 3WL size I |
| RAL-number (EF000116) | - |
| design of the product | main busbar top |
| design of the surface | other |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Max. load capacity (EF000258) | - |
| shape / of inner subdivisions | |
| Article Number (Market Facing Number) | 8PQ5000-4BA31 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| reference code / according to EN 61346-2 | U |
| installation depth / for cabinet installation | 800 mm |
| installation width / for cabinet installation | 600 mm |
| Suitable for enclosure building depth (EF000327) | - |
| Suitable for enclosure building width (EF000326) | - |
| Suitable for enclosure building height (EF009583) | - |
| Region Specific PriceGroup / Headquarter Price Group | 14W / 1DR |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.08.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityDeclaration of ConformityotherMiscellaneousMiscellaneous | General Product Approval |
Product Description
SIVACON S4 SEPARATION 3WL SHAPE 4 3WL SIZE I, 4-POLE WIDTH 600 MM 0. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
