8PQ5000-4BA10

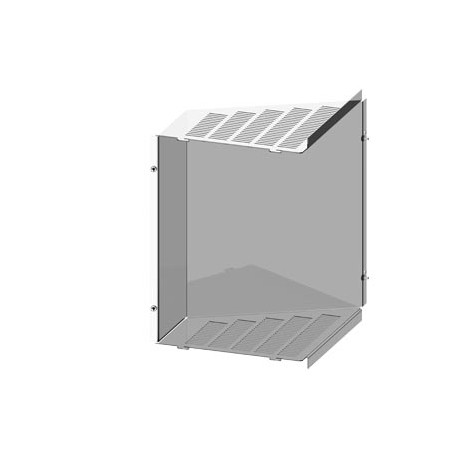

8PQ5000-4BA10 SIEMENS SIVACON S4 separation vertical distribution busbar rear, H: 500mm W: 800mm
$0.00USD
3668 in stock
Key Specifications
:
EAN:4042948182901
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042948182901 |
| UPC | Not available |
| ETIM | 5 |
| color | miscellaneous |
| depth | 400 mm |
| width | 800 mm |
| design | assembly kit |
| eClass | 6 |
| height | 500 mm |
| material | sheet-steel |
| ● lock | No |
| Group Code | P310 |
| net weight | 1.44 kg |
| Confirmation | |
| Metal Factor | None |
| ● shape 2a | Yes |
| ● shape 2b | Yes |
| ● shape 3a | No |
| ● shape 3b | No |
| ● shape 4a | No |
| ● shape 4b | No |
| Date5/16/2022 | |
| Miscellaneous | UK Declaration of Conformity |
| Product Group | 3778 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Internal separation – rear connection |
| Net Weight (kg) | 1,440 Kg |
| ● cable entry | No |
| Depth (EF000049) | 800.0 |
| Model (EF000010) | Other |
| Width (EF000008) | - |
| Colour (EF000007) | White |
| Country of origin | Germany |
| Height (EF000040) | 1900.0 |
| product component | |
| LKZ_FDB/ CatalogID | LV56 |
| Packaging Quantity | 1 |
| Material (EF002169) | Plastic |
| Packaging Dimension | 400,00 x 350,00 x 120,00 |
| Product Description | SIVACON S4 separation vertical distribution busbar rear, H: 500mm W: 800mm |
| product designation | separation on rear, vertical busbar |
| RAL-number (EF000116) | - |
| design of the surface | galvanized |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Max. load capacity (EF000258) | - |
| shape / of inner subdivisions | |
| Article Number (Market Facing Number) | 8PQ5000-4BA10 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| reference code / according to EN 61346-2 | U |
| installation depth / for cabinet installation | 800 mm |
| installation width / for cabinet installation | 800 mm |
| Suitable for enclosure building depth (EF000327) | 800.0 |
| Suitable for enclosure building width (EF000326) | - |
| Suitable for enclosure building height (EF009583) | 1900.0 |
| Region Specific PriceGroup / Headquarter Price Group | 193 / 1DR |
| Compliance with the substance restrictions according to RoHS directive | Since: 23.06.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousDeclaration of ConformityotherMiscellaneousUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
SIVACON S4 VERTICAL SUBASSEMBLY EBS FOR BAR DIST. VERT. HEIGHT 500MM WIDTH 800MM. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
