In Stock Hot Product
8PQ5000-3BA83

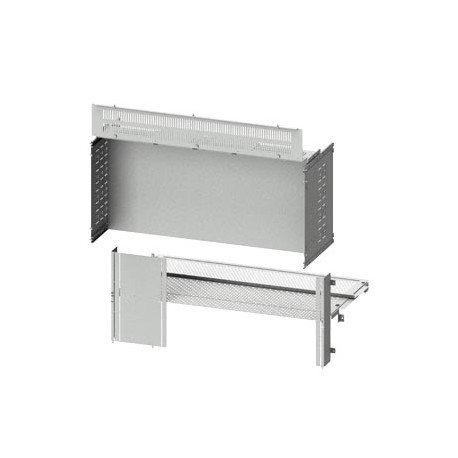

8PQ5000-3BA83 SIEMENS SIVACON S4 separation 3WA FS III, 3/4-pole, withdrawable, H: 550 W: 1000mm for module ..
$0.00USD
4228 in stock
Key Specifications
:UK Declaration of Conformity
EAN:4042948183960
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| UK Declaration of Conformity | |
| EAN | 4042948183960 |
| UPC | Not available |
| ETIM | 5 |
| color | miscellaneous |
| width | 1 000 mm |
| design | assembly kit |
| eClass | 6 |
| height | 550 mm |
| material | Metal / plastic |
| ● lock | No |
| Group Code | P310 |
| net weight | 20.4 kg |
| Confirmation | |
| Metal Factor | None |
| ● shape 2a | No |
| ● shape 2b | No |
| ● shape 3a | Yes |
| ● shape 3b | Yes |
| ● shape 4a | No |
| ● shape 4b | No |
| Date5/11/2022 | |
| Product Group | 3778 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Main busbar at top |
| Net Weight (kg) | 20,400 Kg |
| ● cable entry | No |
| Country of origin | Germany |
| product component | |
| LKZ_FDB/ CatalogID | LV56 |
| Packaging Quantity | 1 |
| Packaging Dimension | 450,00 x 1005,00 x 130,00 |
| Product Description | SIVACON S4 separation 3WA FS III, 3/4-pole, withdrawable, H: 550 W: 1000mm for module door |
| product designation | separation 3WL |
| design of the product | installation kit 3WL |
| design of the surface | other |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 9 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| shape / of inner subdivisions | |
| Article Number (Market Facing Number) | 8PQ5000-3BA83 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| reference code / according to EN 61346-2 | U |
| installation width / for cabinet installation | 1 000 mm |
| Region Specific PriceGroup / Headquarter Price Group | 195 / 1DR |
| Compliance with the substance restrictions according to RoHS directive | Since: 23.06.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousMiscellaneousDeclaration of ConformityotherUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
SIVACON S4 SUBSET 3WL FORM 4 INTERR. 3WL TAM.3 3 OR 4 POLES INSERTION HEIGHT 550 WIDTH 1000MM FOR P. MODULE. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
