In Stock Hot Product
8PQ4000-0BA77

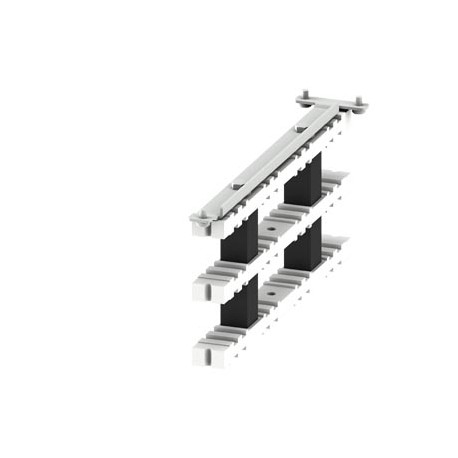

8PQ4000-0BA77 SIEMENS SIVACON S4 Vertical distribution busbar support Non-cascaded Cross-section up to 4x 50..
$0.00USD
3773 in stock
Key Specifications
:Miscellaneous
EAN:4042948166659
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Miscellaneous | |
| EAN | 4042948166659 |
| UPC | Not available |
| ETIM | 5 |
| depth | 400 mm |
| width | 200 mm |
| eClass | 6 |
| height | 1 600 mm |
| Group Code | P310 |
| Confirmation | |
| Metal Factor | None |
| Date5/12/2022 | |
| Product Group | 3778 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Distribution busbar |
| Net Weight (kg) | 3,710 Kg |
| Depth (EF000049) | 400.0 |
| Width (EF000008) | 200.0 |
| Country of origin | Germany |
| Height (EF000040) | 1600.0 |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| Material (EF002169) | - |
| Packaging Dimension | 265,00 x 405,00 x 14,00 |
| Product Description | SIVACON S4 field distrib. busbar support non-cascaded, W: 200mm, 1 set =3 units |
| Product Lifecycle (PLM) | PM300:Active Product |
| Busbar height (EF002639) | - |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | - |
| Declaration of Conformity | other |
| Busbar distance (EF002638) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | - |
| Busbar thickness (EF002640) | - |
| Standard lead time ex-works | 14 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface protection (EF000139) | - |
| Article Number (Market Facing Number) | 8PQ4000-0BA77 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Short-circuit breaking capacity (Icw) (EF002562) | - |
| Region Specific PriceGroup / Headquarter Price Group | 193 / 1DR |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityDeclaration of ConformityotherMiscellaneousMiscellaneous | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
