8PQ2197-0BA22

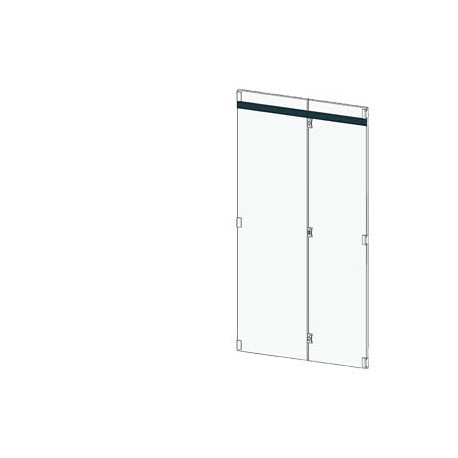

8PQ2197-0BA22 SIEMENS SIKUS/SIVACON Double door Degree of protection IP40 Hinge on the right, Left Double bi..
$0.00USD
4517 in stock
Key Specifications
:Value
EAN:4042948178102
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4042948178102 |
| UPC | Not available |
| ETIM | 4 |
| Color | light grey |
| Notes | Sucessor:Futher information about local contact: www.siemens.com/lowvoltage/contact |
| Width | 1 100 mm |
| Height | 1 975 mm |
| eClass | 6 |
| material | sheet-steel |
| Group Code | P310 |
| net weight | 23.2 kg |
| Price Group | 14W |
| Metal Factor | None |
| Product Group | 3778 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 34,200 Kg |
| ● ventilation | Yes |
| Depth (EF000049) | - |
| Model (EF000010) | Panel door |
| RAL color number | RAL 7035 |
| Width (EF000008) | 1100.0 |
| ● Viewing door | No |
| Colour (EF000007) | Other |
| Country of origin | Germany |
| Height (EF000040) | 1975.0 |
| Product component | |
| LKZ_FDB/ CatalogID | LV10.2 |
| PLM Effective Date | Product phase-out since: 09.06.2020 |
| Packaging Quantity | 1 |
| product brand name | SIVACON S4 |
| Material (EF002169) | Steel |
| Packaging Dimension | 670,00 x 2010,00 x 120,00 |
| Product Description | SIKUS/SIVACON Double door Degree of protection IP40 Hinge on the right, Left Double bit Height 1975 mm Width 1100 mm |
| Product designation | Double door |
| Protection class IP | IP40 |
| design of the surface | Powder-coated |
| EMC-version (EF001062) | - |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 11 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface finishing (EF006569) | Powder coating |
| Opening direction of the door | left / right |
| Product Dimensions (W x L x H) | Not available |
| ● door for disconnector lock | No |
| Version as glazed door (EF006966) | - |
| Design of the product / EMC version | No |
| Degree of protection (IP) (EF005474) | IP40 |
| Article Number (Market Facing Number) | 8PQ2197-0BA22 |
| Degree of protection (NEMA) (EF011959) | Other |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| ● Reference code / acc. to DIN EN 81346-2 | UC |
| ● reference code / acc. to DIN EN 61346-2 | U |
| Version as door for disconnecting switch interlocking (EF006967) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityMiscellaneousMiscellaneous | General Product Approval |
