8PQ2055-1BA04

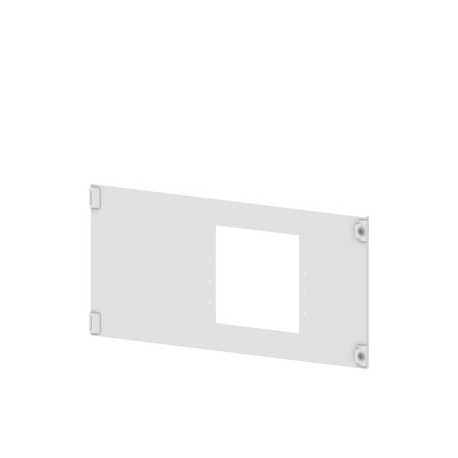

8PQ2055-1BA04 SIEMENS SIVACON S4, mod door, 3WA FS III, 3, 4-pole, IP55, H: 550 mm, W: 1000 mm
$0.00USD
3772 in stock
Key Specifications
:Miscellaneous
EAN:4042948174715
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Miscellaneous | |
| EAN | 4042948174715 |
| UPC | Not available |
| ETIM | 5 |
| color | light grey |
| depth | 25 mm |
| width | 1 000 mm |
| eClass | 6 |
| height | 550 mm |
| material | sheet-steel |
| Group Code | P310 |
| net weight | 9 kg |
| Confirmation | |
| Metal Factor | None |
| Date5/12/2022 | |
| Product Group | 3778 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Main busbar at top |
| Net Weight (kg) | 8,500 Kg |
| ● ventilation | No |
| Depth (EF000049) | - |
| Model (EF000010) | Panel door |
| RAL color number | RAL 7035 |
| Width (EF000008) | 1000.0 |
| ● viewing door | No |
| Colour (EF000007) | Other |
| Country of origin | Germany |
| Height (EF000040) | 550.0 |
| product component | |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | SIVACON S4 |
| Material (EF002169) | Steel |
| Packaging Dimension | 520,00 x 1020,00 x 35,00 |
| Product Description | SIVACON S4, mod door, 3WA FS III, 3, 4-pole, IP55, H: 550 mm, W: 1000 mm |
| product designation | Modular door |
| protection class IP | IP55 |
| design of the product | Size 3 |
| design of the surface | Powder-coated |
| EMC-version (EF001062) | - |
| accessories / included | no |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 9 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface finishing (EF006569) | Other |
| opening direction of the door | left / right |
| ● door for disconnector lock | No |
| Version as glazed door (EF006966) | - |
| design of the product / EMC version | No |
| Degree of protection (IP) (EF005474) | IP55 |
| Article Number (Market Facing Number) | 8PQ2055-1BA04 |
| Degree of protection (NEMA) (EF011959) | Other |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Region Specific PriceGroup / Headquarter Price Group | 193 / 1DR |
| Version as door for disconnecting switch interlocking (EF006967) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 18.03.2008 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityDeclaration of ConformityotherMiscellaneousMiscellaneous | General Product Approval |
Product Description
SIVACON S4 Modular door SENTRON 3WL Switch 3WL13 3 or 4 poles, fixed mount, removable, IP55 H550mm B1000mm. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
