8PQ2025-8BA10

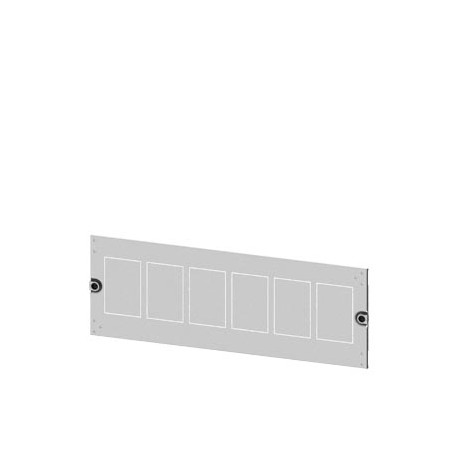

8PQ2025-8BA10 SIEMENS SIVACON S4 cover 3NP1123 (NH000 up to 160 A), H: 250mmW: 800mm
$0.00USD
4466 in stock
Key Specifications
:
EAN:4042948183885
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042948183885 |
| UPC | Not available |
| ETIM | 5 |
| color | light grey |
| depth | 10 mm |
| width | 800 mm |
| eClass | 6 |
| height | 250 mm |
| material | sheet-steel |
| Group Code | P310 |
| net weight | 1 500 g |
| Confirmation | |
| Date5/8/2022 | |
| Metal Factor | None |
| Product Group | 3778 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | 3NP1 fuse switch disconnectors |
| Net Weight (kg) | 1,763 Kg |
| Depth (EF000049) | - |
| Model (EF000010) | - |
| Width (EF000008) | 800.0 |
| Colour (EF000007) | Grey |
| Country of origin | Germany |
| Height (EF000040) | 250.0 |
| LKZ_FDB/ CatalogID | LV56 |
| Packaging Quantity | 1 |
| Material (EF002169) | Other |
| Packaging Dimension | 255,00 x 810,00 x 20,00 |
| Product Description | SIVACON S4 cover 3NP1123 (NH000 up to 160 A), H: 250mmW: 800mm |
| protection class IP | IP30 |
| RAL-number (EF000116) | 7035 |
| design of the product | 3NP1123 |
| installation location | masking frame |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 9 Day/Days |
| Surcharge for Raw Materials | None |
| Mounting position (EF001664) | Other |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Miscellaneous |
| Article Number (Market Facing Number) | 8PQ2025-8BA10 |
| suitability for use / for outside use | No |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| product feature / ventilation can be integrated | No |
| Region Specific PriceGroup / Headquarter Price Group | 193 / 1DR |
| Compliance with the substance restrictions according to RoHS directive | Since: 23.06.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousDeclaration of ConformityotherUK Declaration of ConformityMiscellaneousMiscellaneous | General Product Approval |
Product Description
SIVACON S4 PANEL SENTRON 3NP SWITCH 3NP1123 UP TO 160A POS. VERTICAL MOUNTING FIXED MOUNTING ACTION. DIRECT HEIGHT 250MM WIDTH 800MM. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
