8PQ2020-6BA33

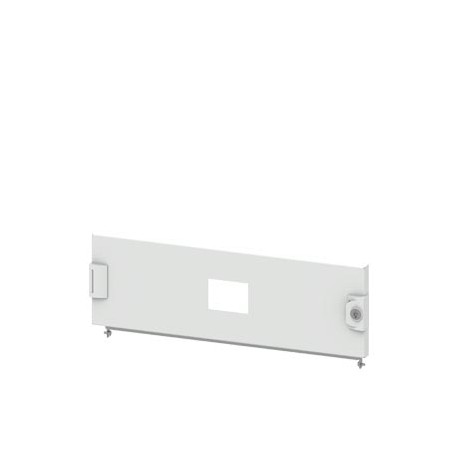

8PQ2020-6BA33 SIEMENS SIVACON S4 mod door 3VL 3VL400 horizontal fixed-mounted plug-in tech. IP40 H: 200 mm W..
$0.00USD
3685 in stock
Key Specifications
:
EAN:4042948183168
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042948183168 |
| UPC | Not available |
| ETIM | 5 |
| color | light grey |
| depth | 25 mm |
| width | 600 mm |
| eClass | 6 |
| height | 200 mm |
| material | sheet-steel |
| Group Code | P310 |
| net weight | 3 kg |
| Confirmation | |
| Metal Factor | None |
| Date5/10/2022 | |
| Product Group | 3778 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 3,011 Kg |
| ● ventilation | No |
| Depth (EF000049) | - |
| Model (EF000010) | Panel door |
| RAL color number | RAL 7035 |
| Width (EF000008) | 600.0 |
| ● viewing door | No |
| Colour (EF000007) | Other |
| Country of origin | Germany |
| Height (EF000040) | 200.0 |
| product component | |
| LKZ_FDB/ CatalogID | LV56 |
| Packaging Quantity | 1 |
| product brand name | SIVACON S4 |
| Material (EF002169) | Steel |
| Packaging Dimension | 215,00 x 610,00 x 65,00 |
| Product Description | SIVACON S4 mod door 3VL 3VL400 horizontal fixed-mounted plug-in tech. IP40 H: 200 mm W: 600 mm |
| product designation | Modular door |
| protection class IP | IP40 |
| design of the product | 3VL400 |
| design of the surface | Powder-coated |
| EMC-version (EF001062) | - |
| accessories / included | no |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 9 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface finishing (EF006569) | Other |
| UK Declaration of Conformity | |
| opening direction of the door | left / right |
| ● door for disconnector lock | No |
| Version as glazed door (EF006966) | - |
| design of the product / EMC version | No |
| Degree of protection (IP) (EF005474) | IP40 |
| Article Number (Market Facing Number) | 8PQ2020-6BA33 |
| Degree of protection (NEMA) (EF011959) | Other |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Region Specific PriceGroup / Headquarter Price Group | 193 / 1DR |
| Version as door for disconnecting switch interlocking (EF006967) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 23.06.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousMiscellaneousDeclaration of ConformityotherUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
SIVACON S4 P. MODULE FOR ACTION. DIRECT SWITCH 3VL4 UP TO 400A 3 POS POS. HORIZONTAL MOUNTING FIXED MOUNT, TECN. PLUG. NO. SWITCHES 1 TYPE OF PROTECTION IP4X HEIGHT 200MM WIDTH 600MM. Manufactured to
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
