8PQ2015-6BA26

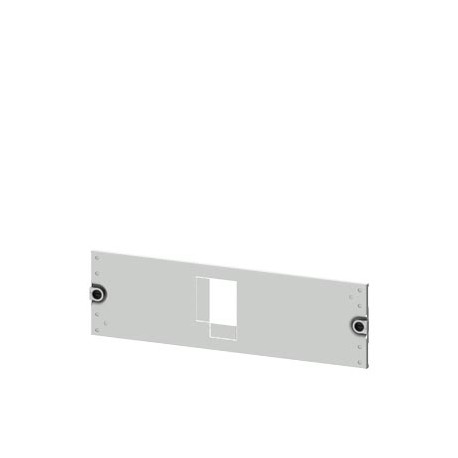

8PQ2015-6BA26 SIEMENS SIVACON S4 cover 3VA10 (100A), 3VA11 (160 A), 4-pole, fixed-moun., plug-in socket, H: ..
$0.00USD
4893 in stock
Key Specifications
:
EAN:4001869559919
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869559919 |
| UPC | Not available |
| ETIM | 5 |
| color | light grey |
| depth | 10 mm |
| width | 600 mm |
| eClass | 6 |
| height | 150 mm |
| material | sheet-steel |
| Group Code | P310 |
| net weight | 800 g |
| Confirmation | |
| Metal Factor | None |
| Date5/10/2022 | |
| Miscellaneous | Miscellaneous |
| Product Group | 3778 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Internal cover - horizontal |
| Net Weight (kg) | 0,764 Kg |
| Depth (EF000049) | - |
| Model (EF000010) | - |
| Width (EF000008) | 600.0 |
| Colour (EF000007) | Grey |
| Country of origin | Germany |
| Height (EF000040) | 150.0 |
| LKZ_FDB/ CatalogID | LV56 |
| Packaging Quantity | 1 |
| Material (EF002169) | Metal |
| Packaging Dimension | 170,00 x 510,00 x 25,00 |
| Product Description | SIVACON S4 cover 3VA10 (100A), 3VA11 (160 A), 4-pole, fixed-moun., plug-in socket, H: 150mm W: 600mm |
| protection class IP | IP30 |
| RAL-number (EF000116) | 7035 |
| design of the product | 3VA10 (up to 100 A), 3VA11 (up to 160 A) |
| installation location | masking frame |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 21 Day/Days |
| Surcharge for Raw Materials | None |
| Mounting position (EF001664) | Other |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 8PQ2015-6BA26 |
| suitability for use / for outside use | No |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| product feature / ventilation can be integrated | No |
| Region Specific PriceGroup / Headquarter Price Group | 193 / 1DR |
| Compliance with the substance restrictions according to RoHS directive | not available |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityDeclaration of ConformityotherMiscellaneousMiscellaneous | General Product Approval |
Product Description
SIVACON S4 COVER SENTRON 3VA 3VA10 (UP TO 100A) 4-POLE, 3-POLE + N HORIZONTAL MOUNTING POSITION FIXED MOUNTED, PLUG-IN BASE NUMBER OF BREAKERS 1 HEIGHT 150 MM WIDTH 600 MM. Manufactured to order. Non-
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
