8MR6523-6LV30

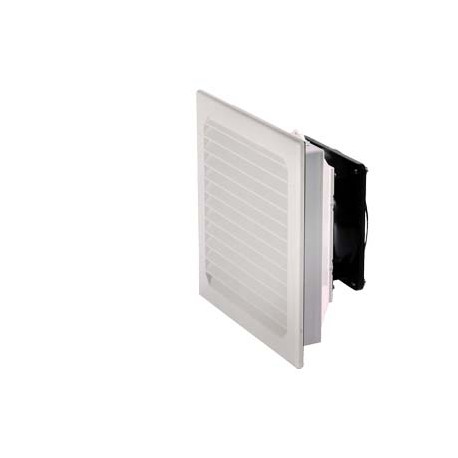

8MR6523-6LV30 SIEMENS Filter fan, Extract: W: 177 mm, H: 177 mm, RAL 7035, IP55, EMC, Airflow: 105 m3/h, Ue ..
$0.00USD
4368 in stock
Key Specifications
:
EAN:4042948186015
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042948186015 |
| UPC | Not available |
| ETIM | 5 |
| color | light grey |
| depth | 90 mm |
| width | 204 mm |
| eClass | 6 |
| height | 204 mm |
| material | plastic |
| Group Code | P310 |
| net weight | 1.1 kg |
| ● maximum | 55 °C |
| ● minimum | 0.11 A |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | None |
| cutout width | 177 mm |
| Product Group | 5847 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| cutout height | 177 mm |
| Commodity Code | 84145925 |
| Product family | 8MR System Air-Conditioning |
| Net Weight (kg) | 1,131 Kg |
| Depth (EF000049) | 90.0 |
| Width (EF000008) | 204.0 |
| consumed current | |
| fastening method | screw fixing |
| operating period | 27 500 h |
| Colour (EF000007) | Grey |
| Country of origin | Germany |
| Height (EF000040) | 204.0 |
| operating voltage | |
| ● wall mounting | Yes |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | SIVACON |
| Packaging Dimension | 210,00 x 210,00 x 105,00 |
| Product Description | Filter fan, Extract: W: 177 mm, H: 177 mm, RAL 7035, IP55, EMC, Airflow: 105 m3/h, Ue AC: 230 V |
| product designation | filter fan |
| protection class IP | IP55 |
| type of ventilation | ventilation |
| RAL-number (EF000116) | RAL 7035 |
| installation location | Control cabinet side panels, door, vertical |
| number of ventilators | 1 |
| EMC-version (EF001062) | true |
| Rated power (EF007051) | 20.0 |
| With filter (EF006013) | TRUE |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| product component / fan | No |
| General Product Approval | other |
| Wall build in (EF007536) | FALSE |
| ● 19-inch installation | No |
| Air circulator (EF007516) | FALSE |
| Noise emission (EF007829) | - |
| Number of fans (EF000928) | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Screw mounting |
| Roof ventilator (EF007099) | FALSE |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| fan design / withdrawable fan | No |
| With protective cover (EF005500) | - |
| Operating voltage at DC (EF008208) | ['-', '-'] |
| A-rated sound power level / maximum | 51 dB |
| Volume flow, freeblowing (EF007173) | 105.12 |
| consumed active power / rated value | 20 W |
| design of the product / EMC version | Yes |
| Degree of protection (IP) (EF005474) | IP55 |
| rotor speed / at 50 Hz / rated value | 2 650 1/min |
| rotor speed / at 60 Hz / rated value | 3 100 1/min |
| Article Number (Market Facing Number) | 8MR6523-6LV30 |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| Built as slide-in ventilator (EF007126) | false |
| Operating voltage at AC 50 Hz (EF008206) | ['230', '230'] |
| Operating voltage at AC 60 Hz (EF008207) | ['230', '230'] |
| reference code / according to EN 61346-2 | E |
| type of voltage / of the operating voltage | AC |
| ● at AC / at 50 Hz / rated value / maximum | 230 V |
| ● at AC / at 60 Hz / rated value / maximum | 230 V |
| Suitable for 19 inch rack mounting (EF000337) | FALSE |
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1DS |
| General Product ApprovalotherConfirmationMiscellaneous | General Product Approval |
| Compliance with the substance restrictions according to RoHS directive | Since: 13.09.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
FILTER FAN CORR. OUTDOOR 105 M3 PRO H TRIMMING 177X177 MM 230 V AC RAL 7035 CONSUMPTION POTENC. 20W GRAD. PROTECTION IP 55 CEM. Manufactured to customer specifications. Non-Cancelable Non-Returnable.
