8MR6402-5VL80

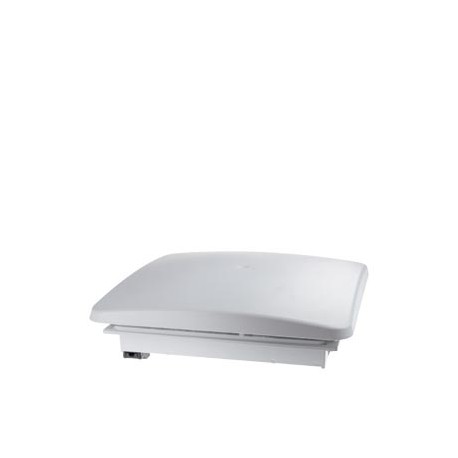

8MR6402-5VL80 SIEMENS Roof fan, Extract: W: 292 mm, H: 292 mm, RAL 7035, IP54, Airflow: 840 m3/h, Ue DC: 24 V
$0.00USD
3008 in stock
Key Specifications
:
EAN:4001869503233
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869503233 |
| UPC | Not available |
| ETIM | 5 |
| color | light grey |
| depth | 203 mm |
| width | 361 mm |
| eClass | 6 |
| height | 361 mm |
| material | plastic |
| Group Code | P310 |
| net weight | 5.75 kg |
| ● maximum | 5 A |
| ● minimum | 5 A |
| Confirmation | |
| Date5/6/2022 | |
| Metal Factor | None |
| cutout width | 292 mm |
| Product Group | 5847 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| cutout height | 292 mm |
| Commodity Code | 84145925 |
| Product family | 8MR System Air-Conditioning |
| Net Weight (kg) | 4,979 Kg |
| Depth (EF000049) | 203.0 |
| Width (EF000008) | 361.0 |
| consumed current | |
| fastening method | snap-on mounting |
| operating period | 40 000 h |
| Colour (EF000007) | Grey |
| Country of origin | Germany |
| Height (EF000040) | 361.0 |
| operating voltage | |
| ● wall mounting | No |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SIVACON |
| Packaging Dimension | 375,00 x 375,00 x 295,00 |
| Product Description | Roof fan, Extract: W: 292 mm, H: 292 mm, RAL 7035, IP54, Airflow: 840 m3/h, Ue DC: 24 V |
| product designation | Roof fans |
| protection class IP | IP54 |
| type of ventilation | ventilation |
| RAL-number (EF000116) | RAL 7035 |
| installation location | roof |
| number of ventilators | 1 |
| EMC-version (EF001062) | false |
| Rated power (EF007051) | 105.0 |
| With filter (EF006013) | FALSE |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | DC |
| product component / fan | Yes |
| ● at DC / rated value | 24 V |
| General Product Approval | Declaration of Conformity |
| Wall build in (EF007536) | FALSE |
| ● 19-inch installation | No |
| Air circulator (EF007516) | FALSE |
| Noise emission (EF007829) | - |
| Number of fans (EF000928) | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Snap mounting |
| Roof ventilator (EF007099) | FALSE |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| fan design / withdrawable fan | No |
| With protective cover (EF005500) | - |
| Operating voltage at DC (EF008208) | ['24', '24'] |
| A-rated sound power level / maximum | 66 dB |
| Volume flow, freeblowing (EF007173) | 839.88 |
| consumed active power / rated value | 105 W |
| design of the product / EMC version | No |
| Degree of protection (IP) (EF005474) | IP54 |
| rotor speed / at 50 Hz / rated value | 2 750 1/min |
| rotor speed / at 60 Hz / rated value | 2 750 1/min |
| Article Number (Market Facing Number) | 8MR6402-5VL80 |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| Built as slide-in ventilator (EF007126) | false |
| Operating voltage at AC 50 Hz (EF008206) | ['-', '-'] |
| Operating voltage at AC 60 Hz (EF008207) | ['-', '-'] |
| reference code / according to EN 61346-2 | E |
| type of voltage / of the operating voltage | DC |
| Suitable for 19 inch rack mounting (EF000337) | FALSE |
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1DS |
| Compliance with the substance restrictions according to RoHS directive | not available |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
Product Description
ROOF-FAN, DC 24V STANDARD IP54 292X292 MM RAL 7035. Manufactured to customer specifications. Non-Cancelable Non-Returnable.
