8MR6400-6GV45

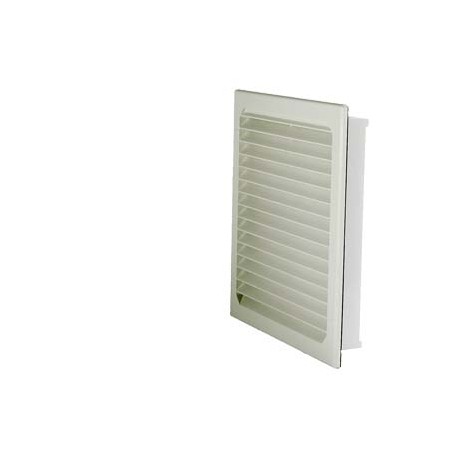

8MR6400-6GV45 SIEMENS Outlet filter, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP54, EMC
$0.00USD
3646 in stock
Key Specifications
:
EAN:4042948185995
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042948185995 |
| UPC | Not available |
| ETIM | 5 |
| color | light grey |
| depth | 37 mm |
| width | 250 mm |
| eClass | 6 |
| height | 250 mm |
| material | plastic |
| Group Code | P310 |
| net weight | 0.59 kg |
| ● maximum | 65 °C |
| ● minimum | -20 °C |
| Confirmation | |
| Date5/3/2022 | |
| Metal Factor | None |
| cutout width | 223 mm |
| Product Group | 5847 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| cutout height | 223 mm |
| Commodity Code | 84149000 |
| Product family | 8MR System Air-Conditioning |
| Net Weight (kg) | 0,583 Kg |
| Depth (EF000049) | 37.0 |
| Width (EF000008) | 250.0 |
| fastening method | screw fixing |
| Colour (EF000007) | Grey |
| Country of origin | Germany |
| Height (EF000040) | 250.0 |
| ● wall mounting | Yes |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | SIVACON |
| Packaging Dimension | 260,00 x 260,00 x 40,00 |
| Product Description | Outlet filter, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP54, EMC |
| product designation | outlet filter |
| protection class IP | IP54 |
| type of ventilation | ventilation |
| RAL-number (EF000116) | RAL 7035 |
| installation location | Control cabinet...panels, door |
| EMC-version (EF001062) | true |
| Rated power (EF007051) | - |
| With filter (EF006013) | TRUE |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC/DC |
| product component / fan | No |
| General Product Approval | Declaration of Conformity |
| Wall build in (EF007536) | FALSE |
| ● 19-inch installation | No |
| Air circulator (EF007516) | FALSE |
| Noise emission (EF007829) | - |
| Number of fans (EF000928) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Screw mounting |
| Roof ventilator (EF007099) | FALSE |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| fan design / withdrawable fan | No |
| With protective cover (EF005500) | - |
| Operating voltage at DC (EF008208) | ['-', '-'] |
| Volume flow, freeblowing (EF007173) | - |
| design of the product / EMC version | Yes |
| Degree of protection (IP) (EF005474) | IP54 |
| Article Number (Market Facing Number) | 8MR6400-6GV45 |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| ambient temperature / during operation | |
| Built as slide-in ventilator (EF007126) | false |
| Operating voltage at AC 50 Hz (EF008206) | ['-', '-'] |
| Operating voltage at AC 60 Hz (EF008207) | ['-', '-'] |
| reference code / according to EN 61346-2 | V |
| Suitable for 19 inch rack mounting (EF000337) | FALSE |
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1DS |
| Compliance with the substance restrictions according to RoHS directive | Since: 13.09.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
Product Description
OUTPUT FILTER TRIM 223X223 MM RAL 7035 GRAD. PROTECTION IP 54 CEM CAT. QUALITY 3. Manufactured to customer specifications. Non-Cancelable Non-Returnable.
