8MR2170-4E

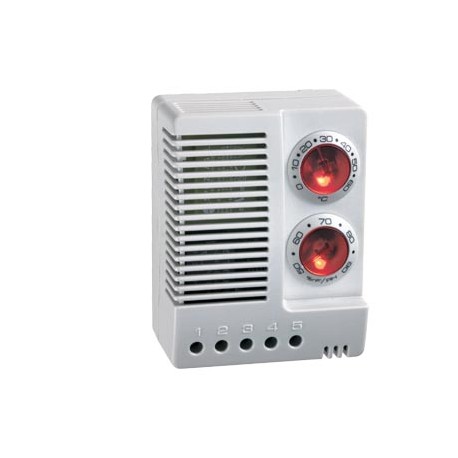

8MR2170-4E SIEMENS Electronic hygrotherm ETF 012 100-240 V AC, 0-+ 60 °C, 50-90% RF
$0.00USD
4183 in stock
Key Specifications
:
EAN:4019169686624
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4019169686624 |
| UPC | Not available |
| ETIM | 5 |
| depth | 43 mm |
| width | 60 mm |
| eClass | 6 |
| height | 77 mm |
| Group Code | P310 |
| net weight | 0.2 kg |
| ● maximum | 60 °C |
| ● minimum | 0 °C |
| Confirmation | |
| Date5/5/2022 | |
| Metal Factor | None |
| Product Group | 5847 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| mounting type | Clip for 35 mm rail |
| Commodity Code | 90328900 |
| Product family | 8MR System Air-Conditioning |
| reference code | |
| Net Weight (kg) | 0,117 Kg |
| fastening method | terminal mounting |
| Country of origin | Germany |
| mounting position | Vertical |
| ● initial value | 50 % |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | SIVACON |
| Packaging Dimension | 45,00 x 80,00 x 60,00 |
| Product Description | Electronic hygrotherm ETF 012 100-240 V AC, 0-+ 60 °C, 50-90% RF |
| product designation | Electronic Hygrotherm new generation |
| protection class IP | IP 20 |
| ● full-scale value | 90 % |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 240 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Clamp mounting |
| Rated current In (EF008250) | 6 |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | K |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | K |
| design of the switching function | CO contact |
| Type of switch function (EF003963) | Change-over contact |
| With digital indication (EF001082) | false |
| product component / digital display | No |
| relative humidity / reference value | 90 % |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 8MR2170-4E |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| type of voltage / of the operating voltage | AC |
| adjustable response value relative humidity | |
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1DS |
| mechanical service life (switching cycles) / typical | 50 000 |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
| Adjustable setting value for relative air humidity (EF008210) | ['50', '90'] |
| connectable conductor cross-section / for rigid conductor / maximum | 2.5 mm² |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2010 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| switching differential relative humidity / at ± 3% tolerance / at 25 °C | 90 % |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
| connectable conductor cross-section / finely stranded / with core end processing / maximum | 2.5 mm² |
Product Description
ELECTRONIC HYGROSTAT EFR012 100-240V AC, 0 - +60 GRAD C, 50-90% RF. Manufactured to customer specifications. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
