In Stock Hot Product
8MR2140-3B

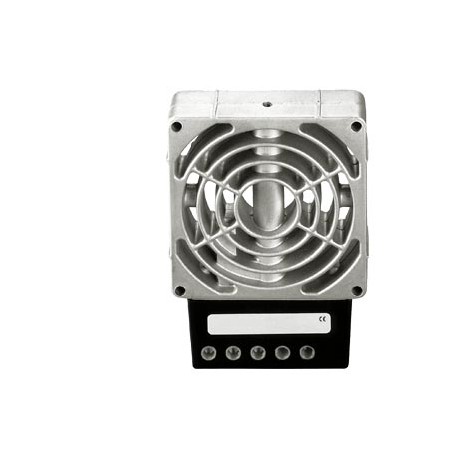

8MR2140-3B SIEMENS fan heater, with fan 230V, 300 W HVL031 03114.0-00
$0.00USD
3269 in stock
Key Specifications
:
EAN:4019169672795
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4019169672795 |
| UPC | Not available |
| ETIM | 5 |
| depth | 47 mm |
| width | 119 mm |
| eClass | 6 |
| height | 151 mm |
| Group Code | P310 |
| net weight | 0.9 kg |
| ● blower | Yes |
| Confirmation | |
| Metal Factor | None |
| Date5/17/2022 | |
| Product Group | 5847 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| Commodity Code | 85162991 |
| Product family | 8MR System Air-Conditioning |
| ● thermostat | No |
| Net Weight (kg) | 0,947 Kg |
| Depth (EF000049) | 47.0 |
| Width (EF000008) | 119.0 |
| fastening method | Clip for 35 mm DIN rail |
| Country of origin | Germany |
| Height (EF000040) | 151.0 |
| operating voltage | |
| product component | |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | SIVACON |
| Packaging Dimension | 125,00 x 190,00 x 30,00 |
| Product Description | fan heater, with fan 230V, 300 W; HVL031 03114.0-00 |
| With fan (EF002196) | true |
| product designation | heater unit |
| protection class IP | IP20 |
| design of the product | With fan |
| Rated power (EF007051) | 300.0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| General Product Approval | other |
| ● rated value / maximum | 230 V |
| ● rated value / minimum | 230 V |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| material / of the enclosure | plastic |
| Package size unit of measure | MM |
| type of connection technology | 3-pole terminal 2.5 mm2 |
| volume flow rate / free-blowing | 108 m³/h |
| Operating voltage at DC (EF008208) | ['-', '-'] |
| consumed active power / rated value | 300 W |
| relative humidity / reference value | 90 % |
| Degree of protection (IP) (EF005474) | IP20 |
| continuous heating power / at 20 °C | 300 W |
| Article Number (Market Facing Number) | 8MR2140-3B |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating voltage at AC 50 Hz (EF008206) | ['230', '230'] |
| Operating voltage at AC 60 Hz (EF008207) | ['230', '230'] |
| reference code / according to EN 61346-2 | R |
| type of voltage / of the operating voltage | AC |
| With room temperature controller (EF001136) | false |
| ● at AC / at 50 Hz / rated value / maximum | 230 V |
| ● at AC / at 50 Hz / rated value / minimum | 230 V |
| ● at AC / at 60 Hz / rated value / maximum | 230 V |
| ● at AC / at 60 Hz / rated value / minimum | 230 V |
| Continuous heating power at 10 °C (EF011919) | - |
| operational current / of the slow-blow fuse link | 2 A |
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1DS |
| General Product ApprovalotherConfirmationMiscellaneous | General Product Approval |
| tightening torque / with screw-type terminals / maximum | 0.8 N·m |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Dodecamethylcyclohex... CAS-No. 540-97-6 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dodecamethylcyclohexasiloxane (D6)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Decamethylcyclopenta... CAS-No. 541-02-6 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Decamethylcyclopentasiloxane (D5)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Boric acid CAS-No. 10043-35-3 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Boric acidBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Octamethylcyclotetra... CAS-No. 556-67-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Octamethylcyclotetrasiloxane (D4)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
THERMOFAN, W/ FAN 230V, 300W; HV031 03111.0-00. Manufactured to customer specifications. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
