8MF1248-3VS4

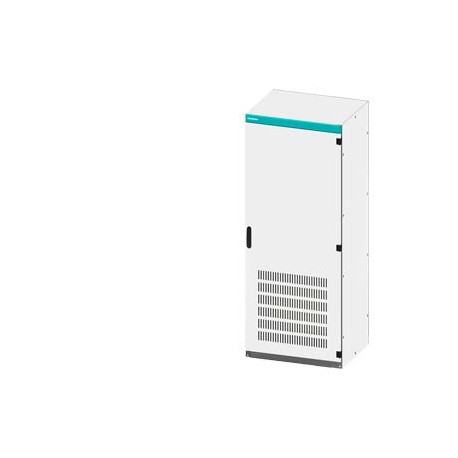

8MF1248-3VS4 SIEMENS SIVACON, Control panel Empty enclosure, according to IEC 62208, with ventilation openin..
$0.00USD
4152 in stock
Key Specifications
:VersionClassificationeClass627-18-01-01eClass7.127-18-01-01eClass827-18-01-01eClass927-18-01-01eClass9.127-18-01-01ETIM5EC000261ETIM6EC000261ETIM7EC000261ETIM8EC000261
EAN:4001869540436
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-18-01-01eClass7.127-18-01-01eClass827-18-01-01eClass927-18-01-01eClass9.127-18-01-01ETIM5EC000261ETIM6EC000261ETIM7EC000261ETIM8EC000261 | |
| EAN | 4001869540436 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | None |
| Product Group | 3799 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 94039910 |
| Product family | Complete Enclosures |
| Net Weight (kg) | 147,000 Kg |
| Depth (EF000049) | 800.0 |
| Width (EF000008) | 400.0 |
| Colour (EF000007) | - |
| Country of origin | Germany |
| Height (EF000040) | 2200.0 |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| Material (EF002169) | Steel |
| Packaging Dimension | 600,00 x 1800,00 x 400,00 |
| Product Description | SIVACON, Control panel Empty enclosure, according to IEC 62208, with ventilation openings, IP20, H: 2200 mm, W: 400 mm, T: 800 mm |
| Tackable (EF006169) | false |
| RAL-number (EF000116) | 7035 |
| EMC-version (EF001062) | false |
| Pitched roof (EF009278) | false |
| Product Lifecycle (PLM) | PM300:Active Product |
| Wall build in (EF007536) | false |
| Pole fastening (EF009582) | false |
| Export Control Regulations | AL : N / ECCN : N |
| Impact strength (EF004293) | - |
| Number of doors (EF000122) | 1 |
| Number of locks (EF000123) | 0 |
| Material quality (EF001257) | - |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| With glazed door (EF001089) | false |
| Package size unit of measure | MM |
| Surface finishing (EF006569) | Powder coating |
| With backside door (EF007381) | false |
| With mounting plate (EF000118) | true |
| With ventilation door (EF006279) | true |
| Wall fastening possible (EF006314) | false |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 8MF1248-3VS4 |
| Degree of protection (NEMA) (EF011959) | - |
| Floor installation possible (EF009581) | true |
| Suitable for outdoor set-up (EF005774) | false |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Suitable for metrical mounting (EF005823) | FALSE |
| Mounting plate depth-adjustable (EF006054) | true |
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1BS |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
SIVACON sicube, empty cabinet enclosure, with ventilation openings, IP20, H: 2200 mm, W: 400 mm, P: 800 mm. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
