8MF1200-3VS4

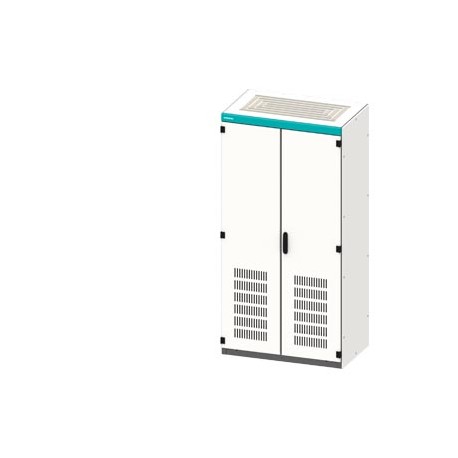

8MF1200-3VS4 SIEMENS SIVACON, Control panel Empty enclosure, according to IEC 62208, with ventilation openin..
$0.00USD
4220 in stock
Key Specifications
:
EAN:4001869495248
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869495248 |
| UPC | Not available |
| ETIM | 5 |
| color | light grey |
| depth | 1 000 mm |
| width | 1 000 mm |
| eClass | 6 |
| height | 2 200 mm |
| material | steel |
| Group Code | P310 |
| net weight | 236.8 kg |
| Confirmation | |
| Metal Factor | None |
| Date5/11/2022 | |
| Miscellaneous | Miscellaneous |
| Product Group | 3799 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| ● rear door | No |
| Commodity Code | 85381000 |
| Product family | Complete Enclosures |
| Net Weight (kg) | 236,800 Kg |
| number of doors | 2 |
| Depth (EF000049) | 1000.0 |
| RAL color number | RAL 7035 |
| Width (EF000008) | 1000.0 |
| fastening method | |
| ● viewing door | No |
| Colour (EF000007) | - |
| Country of origin | Germany |
| Height (EF000040) | 2200.0 |
| product component | |
| ● wall mounting | No |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | SIVACON |
| ● floor mounting | Yes |
| ● flush mounting | No |
| ● mounting plate | Yes |
| Material (EF002169) | Steel |
| Packaging Dimension | 1030,00 x 2220,00 x 1050,00 |
| Product Description | SIVACON, Control panel Empty enclosure, according to IEC 62208, with ventilation openings, IP20, H: 2200 mm, W: 1000 mm, T: 1000 mm |
| Tackable (EF006169) | false |
| product designation | Empty control cabinet enclosure |
| protection class IP | IP20 |
| ● ventilation door | Yes |
| RAL-number (EF000116) | 7035 |
| design of the product | according to IEC 62208 |
| design of the surface | Powder-coated |
| EMC-version (EF001062) | false |
| Pitched roof (EF009278) | false |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Wall build in (EF007536) | false |
| ● 19-inch installation | No |
| Pole fastening (EF009582) | false |
| number of locking devices | 0 |
| Export Control Regulations | AL : N / ECCN : N |
| Impact strength (EF004293) | - |
| Number of doors (EF000122) | 2 |
| Number of locks (EF000123) | 0 |
| Material quality (EF001257) | - |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| With glazed door (EF001089) | false |
| suitability for integration | |
| Package size unit of measure | MM |
| Surface finishing (EF006569) | Powder coating |
| With backside door (EF007381) | false |
| With mounting plate (EF000118) | true |
| With ventilation door (EF006279) | true |
| ● surface-mounted installation | Yes |
| Wall fastening possible (EF006314) | false |
| design of the product / EMC version | No |
| operating resource protection class | Safety class 1 |
| Degree of protection (IP) (EF005474) | IP20 |
| ● height-adjustable mounting plate | Yes |
| Article Number (Market Facing Number) | 8MF1200-3VS4 |
| suitability for use / for outside use | No |
| Degree of protection (NEMA) (EF011959) | - |
| Floor installation possible (EF009581) | true |
| Suitable for outdoor set-up (EF005774) | false |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Suitable for metrical mounting (EF005823) | FALSE |
| Mounting plate depth-adjustable (EF006054) | true |
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1BS |
| suitability for installation / for metric dimensions | Yes |
| product feature / of the enclosure / housing can be lined up | No |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformitySpecial Test CertificateotherMiscellaneousMiscellaneous | General Product Approval |
Product Description
VENT WARDROBE. EA IP20 AAP 2200X1000X1000. Cancelations and returns limited. Consult conditions.
