8GK6736-6KK13

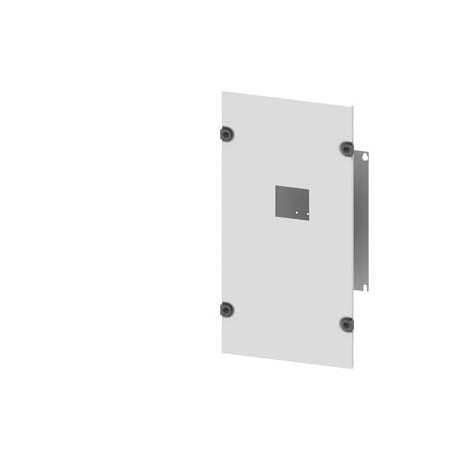

8GK6736-6KK13 SIEMENS ALPHA 630 Universal Circuit breaker kit 1x 3VA10-11/100A/160A 3+4-pole H 600 mm W 300 ..
$0.00USD
4350 in stock
Key Specifications
:
EAN:4001869510583
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869510583 |
| UPC | Not available |
| ETIM | 5 |
| width | 300 mm |
| eClass | 6 |
| height | 600 mm |
| Group Code | P310 |
| net weight | 4 000 g |
| Confirmation | |
| Date5/3/2022 | |
| Metal Factor | None |
| Product Group | 5742 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Assembly kits / Accessories for ALPHA UNIVERSAL distrib. boards |
| Net Weight (kg) | 3,294 Kg |
| Depth (EF000049) | - |
| Width (EF000008) | 300.0 |
| Country of origin | Germany |
| Height (EF000040) | 600.0 |
| mounting position | Vertical installation |
| product component | |
| ● grounding bus | No |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | ALPHA UNIVERSAL |
| ● mounting plate | Yes |
| Packaging Dimension | 300,00 x 600,00 x 55,00 |
| Product Description | ALPHA 630 Universal Circuit breaker kit 1x 3VA10-11/100A/160A 3+4-pole H=600 mm W=300 mm, horizontal Installation for motorized operating mechanism for RCD module infeed side |
| cover plate version | with cutout |
| product designation | Assembly kit for 3VA1 molded-case circuit breakers |
| With cover (EF000361) | true |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● plastic cover plate | Yes |
| General Product Approval | Test Certificates |
| Type of cover (EF000339) | With notch |
| Export Control Regulations | AL : N / ECCN : N |
| With N-PE clamp (EF007962) | false |
| Standard lead time ex-works | 3 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Number of DIN-rails (EF001232) | - |
| With mounting plate (EF000118) | true |
| Article Number (Market Facing Number) | 8GK6736-6KK13 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Number of modular spacings per DIN-rail (EF001233) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13W / 1BP |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalTest CertificatesotherConfirmationSpecial Test CertificateMiscellaneous | General Product Approval |
Product Description
ALPHA 630 UNIVERSAL KIT FOR AUT SWITCH. 1 X 3VA10-11 /100A /160A 3 + 4 POLES AL=600MM AN=300MM, MONT. VERT. FOR ACCTO. MOTORIZED FOR RCD MODULE CONNECTED SIDE. Manufactured to order. Non-Cancelable No
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
