8GB1372-2

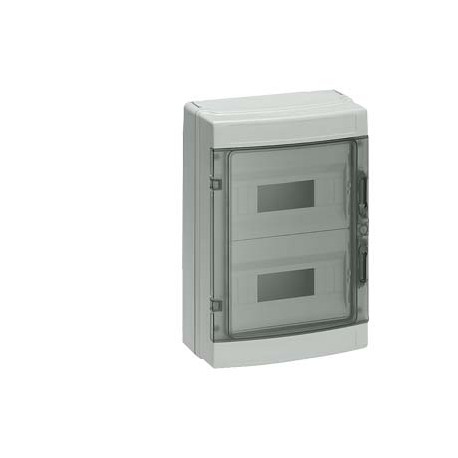

8GB1372-2 SIEMENS SIMBOX Universal WP Wall-mounted distribution board FM, IP65 2-tier, 24 MW, without Termin..
$0.00USD
4093 in stock
Key Specifications
:
EAN:4001869220888
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869220888 |
| UPC | Not available |
| ETIM | 5 |
| color | grey |
| depth | 140 mm |
| width | 298 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 420 mm |
| Group Code | P310 |
| Confirmation | |
| Date5/2/2022 | |
| Metal Factor | None |
| Miscellaneous | |
| Product Group | 5722 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85381000 |
| Product family | Small distribution boards |
| number of rows | 2 |
| Net Weight (kg) | 2,482 Kg |
| Depth (EF000049) | 140.0 |
| RAL color number | RAL 7035 |
| Width (EF000008) | 298.0 |
| fastening method | Surface mounting |
| Colour (EF000007) | Grey |
| Country of origin | Italy |
| Height (EF000040) | 420.0 |
| product component | |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | ALPHA |
| ● mounting plate | No |
| DIN-rail (EF001134) | true |
| Packaging Dimension | 140,00 x 298,00 x 420,00 |
| Product Description | SIMBOX Universal WP Wall-mounted distribution board FM, IP65 2-tier, 24 MW, without Terminal strip |
| product designation | SIMBOX WP |
| protection class IP | IP65 |
| With lock (EF006306) | false |
| ● DIN mounting bar | Yes |
| RAL-number (EF000116) | 7035 |
| design of the product | Surface mounting |
| ● transparent cover | Yes |
| Cover model (EF009212) | Closed |
| EMC-version (EF001062) | false |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Type of cover (EF000339) | - |
| Built-in depth (EF000218) | 70.0 |
| Internal depth (EF001131) | - |
| Number of rows (EF000266) | 2 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Other |
| Type of closure (EF004462) | - |
| Material housing (EF001596) | Other |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| design of the cap/top cover | closed |
| material / of the enclosure | others |
| Package size unit of measure | MM |
| Extension possible (EF001088) | false |
| number of modular width units | 12 |
| With mounting plate (EF000118) | false |
| Transparent cover/door (EF006244) | true |
| design of the product / EMC version | No |
| Degree of protection (IP) (EF005474) | IP65 |
| Article Number (Market Facing Number) | 8GB1372-2 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Width in number of modular spacings (EF002950) | 12 |
| Region Specific PriceGroup / Headquarter Price Group | 11V / 1BO |
| product extension / optional / side-by-side mounting | No |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationType Test Certificates/Test ReportSpecial Test CertificateotherMiscellaneous | General Product Approval |
Product Description
SIMBOX UNIVERSAL WP 2 rows 12 mod. IP 65 superf.. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
