In Stock Hot Product
89300028

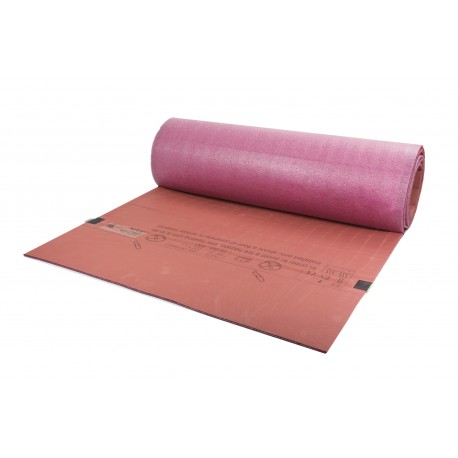

89300028 DANFOSS HEATING DEVIdry 100 5m² 440W 230V
$0.00USD
3058 in stock
Key Specifications
EAN ():5703466177907
Type ():DEVIdry™
Volume ():65.625 Liter
Approval ():CE
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5703466177907 |
| Type () | DEVIdry™ |
| Volume () | 65.625 Liter |
| Approval () | CE |
| Cold lead () | No |
| Cable type () | Single conductor |
| Net weight () | 6.98 Kilogram |
| Width [mm] () | 1000 mm |
| Application () | Floor heating |
| Description () | DEVIdry 100 5m² 440W 230V |
| UNSPSC CODE () | 40101830 |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 7.05 Kilogram |
| Cut to length () | No |
| Mat width [m] () | 1 m |
| Product group () | Heating Mats |
| Warranty type () | 5-year product warranty |
| Mat length [m] () | 5 m |
| Thickness [mm] () | 8 mm |
| Set accessories () | No |
| Warranty [Year] () | 5 |
| Element IP Class () | IPX7 |
| In scope of WEEE () | Yes |
| Current [A] [Max] () | 10 A |
| Heating principle () | Serial resistive |
| EU RoHS compliance () | Yes |
| Heating output [W] () | 440 W |
| Mat output [W/m²] () | 100 W/m² |
| Package depth [mm] () | 1050 mm |
| Package width [mm] () | 250 mm |
| UK RoHS compliance () | Out of scope |
| Coverage area [m²] () | 5 m² |
| Insulation material () | PP-Foam |
| Package height [mm] () | 250 mm |
| Product description () | DEVIdry™ 100 |
| Sound reduction [dB] () | 17 dB |
| Certification company () | CE |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] AC () | 230 V |
| Cable resistance [Ohm] () | 120 |
| Thermal resistance [W/m²K] () | 8 Btu/h-ft²Â°F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Heating Mats, DEVIdry™, 100 W/m², 5.00 m², Supply voltage [V] AC: 230
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable type: Single conductor, Set accessories: No, Mat width [m]: 1.0, Mat length [m]: 5.00, Application: Floor heating
