In Stock Hot Product
89300022

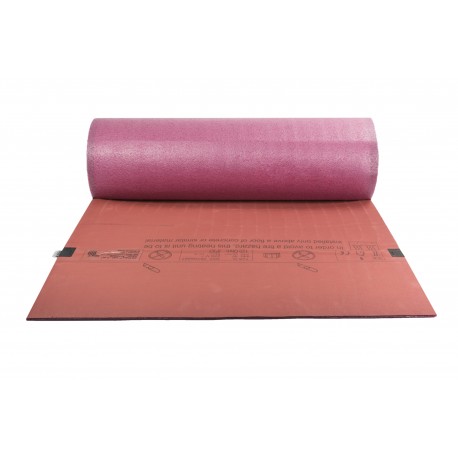

89300022 DANFOSS HEATING DEVIdry 100 2m² 140W 230W
$0.00USD
3917 in stock
Key Specifications
EAN ():5703466177877
Type ():DEVIdry™
Volume ():34.02 Liter
Approval ():CE
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5703466177877 |
| Type () | DEVIdry™ |
| Volume () | 34.02 Liter |
| Approval () | CE |
| Cold lead () | No |
| Cable type () | Single conductor |
| Net weight () | 3.32 Kg |
| Width [mm] () | 1000 mm |
| Application () | Floor heating |
| Description () | DEVIdry 100 2m² 140W 230V |
| UNSPSC CODE () | 40101830 |
| Gross weight () | 3.353 Kg |
| Cut to length () | No |
| Product group () | Heating Mats |
| Warranty type () | 5-year product warranty |
| Mat length [m] () | 2 m |
| Thickness [mm] () | 8 mm |
| Set accessories () | No |
| Warranty [Year] () | 5 |
| Element IP Class () | IPX7 |
| Current [A] [Max] () | 10 A |
| Heating principle () | Serial resistive |
| EU RoHS compliance () | No - out of scope |
| Heating output [W] () | 140 W |
| Mat output [W/m²] () | 100 W/m² |
| Package depth [mm] () | 1050 mm |
| Package width [mm] () | 180 mm |
| Coverage area [m²] () | 2 m² |
| Insulation material () | PP-Foam |
| Package height [mm] () | 180 mm |
| Product description () | DEVIdry™ 100 |
| Sound reduction [dB] () | 17 dB |
| Certification company () | CE |
| Supply voltage [V] AC () | 230 V |
| Cable resistance [Ohm] () | 378 |
| Thermal resistance [W/m²K] () | 8 Btu/h-ft²Â°F |
| In scope of WEEE and contain batteries () | No |
Product Description
Heating Mats, DEVIdry™, 100 W/m², 2.00 m², Supply voltage [V] AC: 230
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable type: Single conductor, Set accessories: No, Mat length [m]: 2.00, Application: Floor heating
