In Stock Hot Product
87112

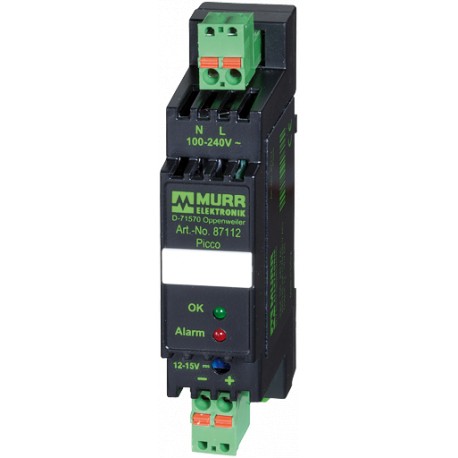

87112 MURRELEKTRONIK PICCO power supply 1-phase In: 110-230VAC / OUT: 12 15VDC/0,85A
$0.00USD
3084 in stock
Key Specifications
EAN:4048879299442
Ripple:max. 20 mV eff/rms
Spikes:max. 100 mV ss/pp
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879299442 |
| Ripple | max. 20 mV eff/rms |
| Spikes | max. 100 mV ss/pp |
| eClass | 27049002 |
| Weight: | 0.19 kg |
| Art.No.: | 87112 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2 |
| Efficiency | 86% (110 V AC); 88% (230 V AC) |
| Protection | IP20 |
| LED display | LED (green) for output voltage |
| Input current | 0.2 A (115 V AC); 0.12 A (230 V AC) |
| Input voltage | 100...240 V AC/120...370 V DC |
| Output current | 0.85 A (+50 °C); 0.085 A (+70 °C) |
| Output voltage | 12 V DC (SELV), ±1%; 12...15 V adjustable |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Unit protection | Short-circuit and overload protected |
| Relative humidity | 20...90%, no condensation |
| Temperature range | 0...+50 °C, ...+60 °C derating (storage temperature -25...+85 °C) |
| country of origin | CN |
| customs tariff number | 85044090 |
| Primary fusing external | max. 10 A |
| Inrush current after 1 ms | max. 30 A |
| Mains failure bridging time | 10...25 ms (115 V AC) |
| Parallel usage/serial usage | max. 5 units/max. 2 units |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
