In Stock Hot Product
866175

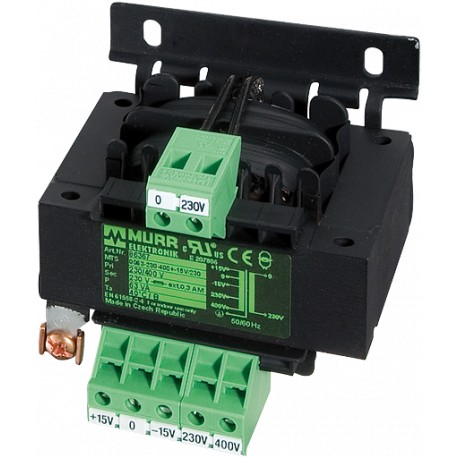

866175 MURRELEKTRONIK MST single-phase control and isolation transformer P:100VA IN:200/208/220/240VAC OUT:2..
$0.00USD
4198 in stock
Key Specifications
EAN:4048879311625
eClass:27031202
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879311625 |
| eClass | 27031202 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 4.8×12 mm |
| Input current | 0.59 A (200 V AC) |
| Input voltage | 200, 208, 220, 240 V AC |
| Output rating | 100 VA |
| Inrush current | 5.8 A (200 V AC) |
| Output voltage | 2× 115 V AC |
| Packaging unit | 1 |
| Mounting method | Key-hole mounting |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 88×85×95 mm |
| Short-circuit current | 8 A (200 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 65.3×64×4.8 mm |
| Test isolation voltage | 3.9 kV |
Product Description
MST SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMERP:100VA IN:200/208/220/240VAC OUT:2x115VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
