866170

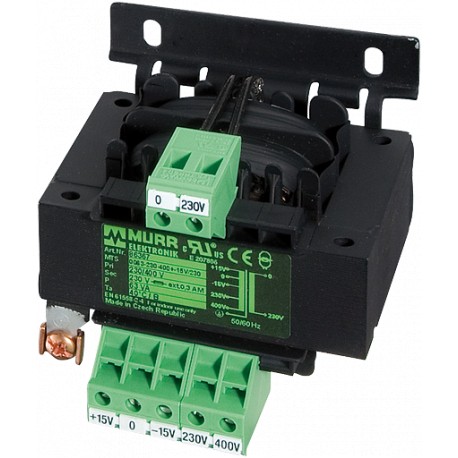

866170 MURRELEKTRONIK MTS single-phase control and isolation transformer P:150VA IN:400VAC±5% OUT:24VAC/230V..
$0.00USD
3506 in stock
Key Specifications
EAN:4048879307154
eClass:27031202
Frequency:50...60 Hz
Standards:EN 61558-2-4, EN 61558-2-6, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879307154 |
| eClass | 27031202 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-2-4, EN 61558-2-6, EN 62041 category 0 |
| Drill hole Ø | 4.8×8.4 mm |
| Input current | 0.45 A (400 V AC) |
| Input voltage | 400 V AC ±5% |
| Output rating | 150 VA |
| Inrush current | 4.5 A (400 V AC) |
| Output voltage | 24/230 V AC |
| Packaging unit | 1 |
| Mounting method | screw fixing |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 88×84×98 mm |
| Short-circuit current | 6 A (400 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 64.5×64×4.8 mm |
| Test isolation voltage | 5.8 kV (prim./sec.) |
Product Description
MTS SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMERP:150VA IN:400VAC±5% OUT:24VAC/230VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
