In Stock Hot Product
866159

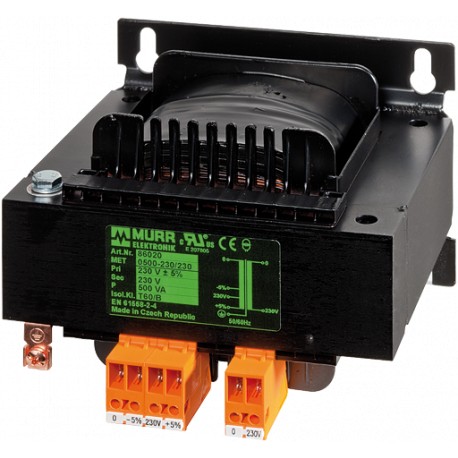

866159 MURRELEKTRONIK MST single-phase control and isolation transformer P:500VA IN:400VAC±5% OUT:230VAC
$0.00USD
4754 in stock
Key Specifications
EAN:4048879287319
eClass:27031202
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879287319 |
| eClass | 27031202 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Input current | 1.4 A (400 V AC) |
| Input voltage | 400 V AC ±5% |
| Output rating | 500 VA |
| Inrush current | 21 A (400 V AC) |
| Output voltage | 230 V AC |
| Packaging unit | 1 |
| Mounting method | Screw fixing M5, 4 pcs. in rectangle 87×104 mm |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 118×135×132 mm |
| Short-circuit current | 34 A (400 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 87×104×5.8 mm |
| Test isolation voltage | 5.8 kV (prim./sec.) |
Product Description
MST SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMERP:500VA IN:400VAC±5% OUT:230VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
