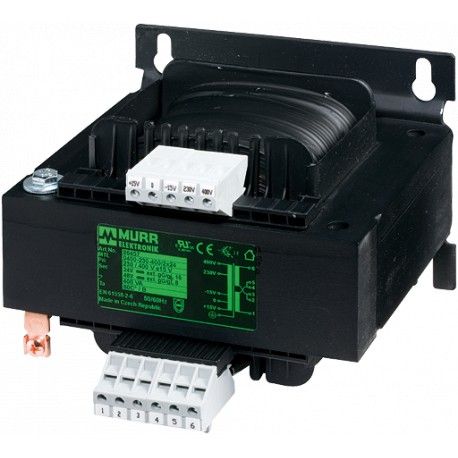

86486 MURRELEKTRONIK MST single-phase control and isolation transformer P: 2500VA IN: 230/400VAC +/- 15VAC O..
$0.00USD
3186 in stock
Key Specifications
EAN:4048879366892
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879366892 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 10×18 mm |
| Input current | 11.4 A (230 V AC); 6.6 A (400 V AC) |
| Input voltage | 230/400 ±15 V AC |
| Output rating | 2500 VA |
| Inrush current | 234 A (230 V AC); 107 A (400 V AC) |
| Output voltage | 1× 230, 1× 115, 2× 115 V AC |
| Packaging unit | 1 |
| Mounting method | Long-hole mounting |
| Temperature range | -20...+40 °C, no condensation |
| country of origin | CZ |
| Dimensions H×W×D | 182×192×196 mm |
| Short-circuit current | 532 A (230 V AC); 302 A (400 V AC) |
| customs tariff number | 85043200 |
| Fixing centers a×b×c | 150×150×10 mm |
| Test isolation voltage | 5.8 kV (prim./sec.) |
Product Description
MST 1-PHASE CONTROL AND ISOLATION TRANSFORMERP: 2500VA IN: 230/400VAC +/- 15VAC OUT: 2x115VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
