In Stock Hot Product
86342

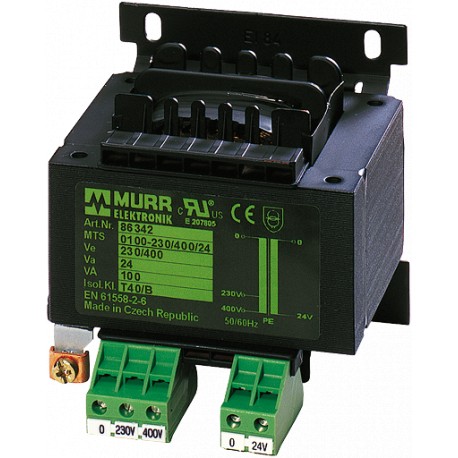

86342 MURRELEKTRONIK MTS single-phase safety transformer P: 100VA IN: 230/400VAC OUT: 24VAC
$0.00USD
3218 in stock
Key Specifications
EAN:4048879078535
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-6, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879078535 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-6, EN 62041 category 0 |
| Drill hole Ø | 4.8×8.4 mm |
| Input current | 0.54 A (230 V AC); 0.31 A (400 V AC) |
| Input voltage | 230/400 V AC |
| Output rating | 100 VA |
| Inrush current | 3.5 A (230 V AC); 2 A (400 V AC) |
| Output voltage | 24 V AC (SELV) |
| Packaging unit | 1 |
| Mounting method | Long-hole mounting or DIN-rail mountable TH35 (EN 60715) |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 86×84×98 mm |
| Short-circuit current | 5 A (230 V AC); 2.98 A (400 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 64.5×64×4.8 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
Product Description
MTS 1-PHASE SAFETY TRANSFORMERP: 100VA IN: 230/400VAC OUT: 24VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
