In Stock Hot Product
86340

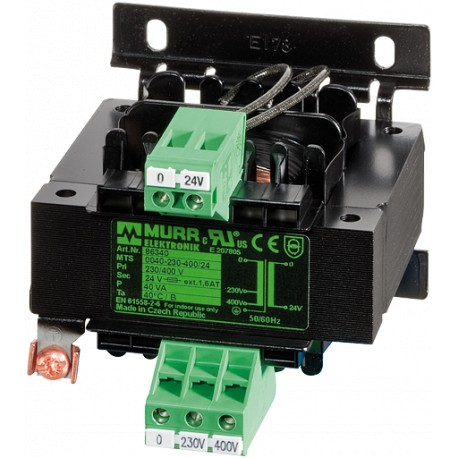

86340 MURRELEKTRONIK MTS 1-PHASE SAFETY TRANSFORMER P: 40VA IN: 230/400VAC OUT: 24VAC
$0.00USD
3271 in stock
Key Specifications
EAN:4048879078559
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-6, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879078559 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-6, EN 62041 category 0 |
| Drill hole Ø | 4.8×8.4 mm |
| Input current | 0.24 A (230 V AC); 0.14 A (400 V AC) |
| Input voltage | 230/400 V AC |
| Output rating | 40 VA |
| Inrush current | 1.61 A (230 V AC); 0.94 A (400 V AC) |
| Output voltage | 24 V AC (SELV) |
| Packaging unit | 1 |
| Mounting method | Long-hole mounting or DIN-rail mountable TH35 (EN 60715) |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 79×78×93 mm |
| Short-circuit current | 1.83 A (230 V AC); 1.02 A (400 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 56×56×4.8 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
Product Description
MTS 1-PHASE SAFETY TRANSFORMER
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
