In Stock Hot Product
86140

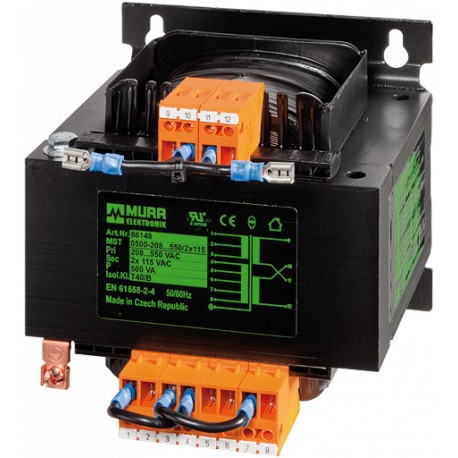

86140 MURRELEKTRONIK MTS 1-PHASE CONTROL AND ISOLATION TRANSFORMER P: 25VA IN: 208...550VAC OUT: 2x115VAC
$0.00USD
4294 in stock
Key Specifications
EAN:4048879444170
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879444170 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 4.8×8.4 mm |
| Input current | 0.17 A (208 V AC); 0.06 A (550 V AC) |
| Input voltage | 208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550 V AC |
| Output rating | 25 VA |
| Inrush current | 1.94 A (208 V AC); 0.75 A (550 V AC) |
| Output voltage | 1× 230, 1× 115, 2× 115 V AC |
| Packaging unit | 1 |
| Mounting method | Long-hole mounting or DIN-rail mountable TH35 (EN 60715) |
| Temperature range | -20...+40 °C (storage temperature -20...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 90×78×102 mm |
| Short-circuit current | 1 A (208 V AC); 0.4 A (550 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 56×56 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
Product Description
MTS 1-PHASE CONTROL AND ISOLATION TRANSFORMER
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
