In Stock Hot Product
86110

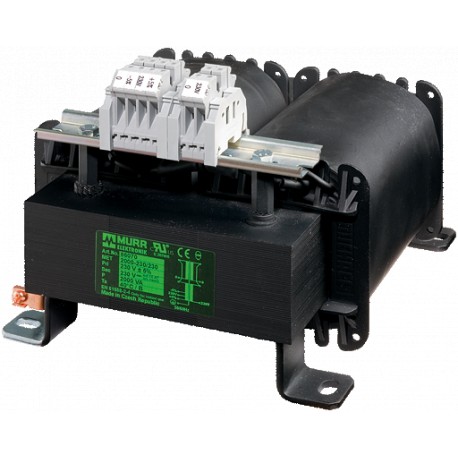

86110 MURRELEKTRONIK MET 1-PHASE CONTROL AND ISOLATION TRANSFORMER P: 4000VA IN: 230VAC+/- 5% OUT: 230VAC
$0.00USD
4508 in stock
Key Specifications
EAN:4048879078795
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879078795 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 9×14 mm |
| Input current | 18 A (230 V AC) |
| Output rating | 4000 VA |
| Inrush current | 337 A (230 V AC) |
| Output voltage | 230 V AC |
| Packaging unit | 1 |
| Mounting method | Long-hole mounting |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 206×198×250 mm |
| Short-circuit current | 807.5 A (230 V AC) |
| customs tariff number | 85043200 |
| Fixing centers a×b×c | 200×174×9 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
Product Description
MET 1-PHASE CONTROL AND ISOLATION TRANSFORMER
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
