In Stock Hot Product
86071

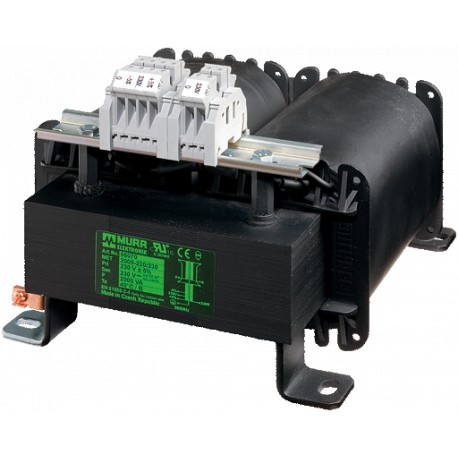

86071 MURRELEKTRONIK MET single-phase control and isolation transformer P: 2000VA IN: 400VAC+/- 5% OUT: 230V..
$0.00USD
4750 in stock
Key Specifications
EAN:4048879078825
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879078825 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 9×14 mm |
| Input current | 5.1 A (400 V AC) |
| Input voltage | 400 V AC ±5% |
| Output rating | 2000 VA |
| Inrush current | 76 A (400 V AC) |
| Output voltage | 230 V AC |
| Packaging unit | 1 |
| Mounting method | Long-hole mounting |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 170×195×250 mm |
| Short-circuit current | 182 A (400 V AC) |
| customs tariff number | 85043200 |
| Fixing centers a×b×c | 200×174×9 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
Product Description
MET 1-PHASE CONTROL AND ISOLATION TRANSFORMERP: 2000VA IN: 400VAC+/- 5% OUT: 230VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
