In Stock Hot Product
85722

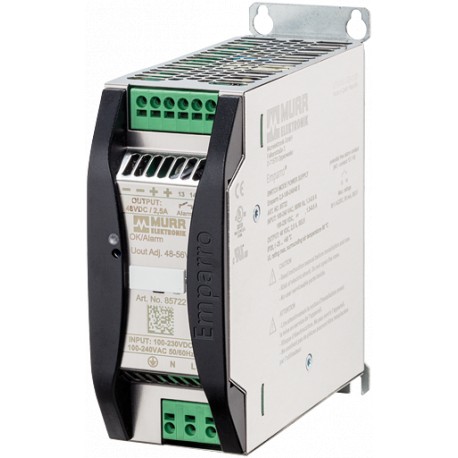

85722 MURRELEKTRONIK Emparro 2,5-100-240/48 S
$0.00USD
3696 in stock
Key Specifications
EAN:4048879670166
Ripple:max. 50 mVrms
Spikes:max. 200 mV p-p
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879670166 |
| Ripple | max. 50 mVrms |
| Spikes | max. 200 mV p-p |
| eClass | 27049002 |
| Art.No.: | 85722 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47 |
| Connection | Push-In spring clamp terminals |
| Efficiency | 92.8% (110 V AC); 94.6 % (230 V AC) |
| Protection | IP20 |
| LED display | LED (green): OK; LED (red): overload, overheating or short-circuit |
| Power Boost | Iout N × 150% (min. 4 s) |
| Power factor | 0.87 (230 V AC) |
| Input current | 1.2 A (100 V AC); 0.6 A (240 V AC) |
| Input voltage | 85...265 V AC/90...250 V DC |
| Output current | 2.5 A |
| Output voltage | 48 V DC (SELV), ±1%; 48...56 V adjustable |
| Packaging unit | 1 |
| Mounting method | screw fixing |
| Unit protection | Short-circuit and overload protected |
| Relative humidity | 5...95%, no condensation |
| Temperature range | -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Alternative product: | Product ComparisonINPUT: 85...265 V AC/90...250 V DCOUTPUT: 48...56 V DCCurrent: 2.5 AInputInput voltage85...265 V AC/90...250 V DCInput current1.2 A (100 V AC); 0.6 A (240 V AC)Inrush current after 1 msmax. 3.5 A (230 V AC)Power factor0.87 (230 V AC)Frequency50...60 HzInput fuse (internal)6.3 A (T)General dataStandardsEN 60950-1, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47Relative humidity5...95%, no condensationProtectionIP20Efficiency92.8% (110 V AC); 94.6 % (230 V AC)Dimensions H × W × D123×50×138 mmConnectionPush-In spring clamp terminalsMounting methodscrew fixingTemperature range-40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)OutputOutput voltage48 V DC (SELV), ±1%; 48...56 V adjustablePower BoostIout N × 150% (min. 4 s)Output current2.5 AMains failure bridging timemin. 30 ms (100 V AC); 2.5 A (48 V DC)Ripplemax. 50 mVrmsSpikesmax. 200 mV p-pUnit protectionShort-circuit and overload protectedLED displayLED (green): OK; LED (red): overload, overheating or short-circuitParallel usage/serial usagemax. 5 units/max. 2 unitsCommercial datacountry of originCZcustoms tariff number85044090EAN4048879670166eClass27049002Packaging unit1 |
| Input fuse (internal) | 6.3 A (T) |
| customs tariff number | 85044090 |
| Dimensions H × W × D | 123×50×138 mm |
| Inrush current after 1 ms | max. 3.5 A (230 V AC) |
| Mains failure bridging time | min. 30 ms (100 V AC); 2.5 A (48 V DC) |
| Parallel usage/serial usage | max. 5 units/max. 2 units |
Product Description
Emparro 2,5-100-240/48 SScrew mounting
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
