In Stock Hot Product
85703

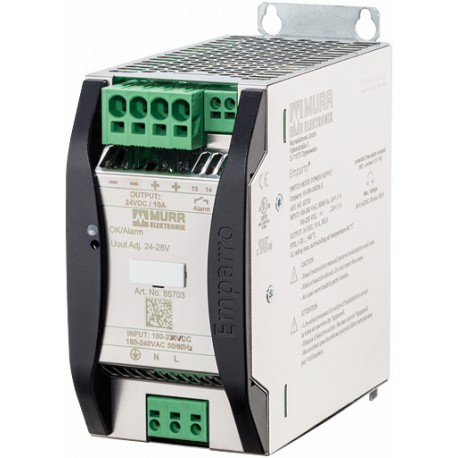

85703 MURRELEKTRONIK Emparro 10-100-240/24 S
$0.00USD
4792 in stock
Key Specifications
EAN:Four trillion forty eight billion eight hundred seventy nine million six hundred sixty nine thousand eight hundred twenty five
Peaks:max. 200 mV p-p
eClass:Twenty seven million forty nine thousand two
Article::Eighty five thousand seven hundred three
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion forty eight billion eight hundred seventy nine million six hundred sixty nine thousand eight hundred twenty five |
| Peaks | max. 200 mV p-p |
| eClass | Twenty seven million forty nine thousand two |
| Article: | Eighty five thousand seven hundred three |
| Frequency | 50...60 Hz |
| Standards | IN en 60950-1, en 61204-3, en 55011 B, en 61000-3-2, SEMI F47 |
| Mount mode | screw |
| Protection | IP20 |
| Power Boost | Iout N × 150% (min. 4 s) |
| Packing unit | One |
| Waiting time | min. 30 ms (100 V AC); 10 A (24 V DC) |
| Energy Factor | 0.95 (230 V AC) |
| Input current | 2.6 A (100 V AC); 1.1 A (240 V AC) |
| Input voltage | 85...265 V AC/90...250 V DC |
| LED indicator | LED (green): OK; LED (red): overload, overheating and short circuit |
| Output current | 10 To |
| Output voltage | 24 V DC (SELV), ±1%; 24...28 V adjustable |
| Protection unit | Short circuit and overload protection |
| Residual ripple | max. 50 mVrms |
| Country of origin | CZ |
| Relative humidity | 5...95%, non-condensing |
| Temperature range | -40...+60 °C ...+70 ° C reduction (temp. storage -40...+80 °C) |
| Type of connection | Plug-in connection terminals |
| Alternative product: | Comparator productINPUT: 85...265 V AC/90...250 V DCOUTPUT: 24...28 V DCCurrent: 10 ToEntryInput voltage85...265 V AC/90...250 V DCInput current2.6 A (100 V AC); 1.1 A (240 V AC)Inrush current after 1 msmax. 13 ToEnergy Factor0.95 (230 V AC)Frequency50...60 HzInput fuse (internal)6.3 A (T)General characteristicsStandardsIN en 60950-1, en 61204-3, en 55011 B, en 61000-3-2, SEMI F47Relative humidity5...95%, non-condensingProtectionIP20Degree of efficiency92.8% (110 V AC); 94.3% (230 V AC)Dimensions height × width × fund123 x 65 x 138 mmType of connectionPlug-in connection terminalsMount modescrewTemperature range-40...+60 °C ...+70 ° C reduction (temp. storage -40...+80 °C)OutputOutput voltage24 V DC (SELV), ±1%; 24...28 V adjustablePower BoostIout N × 150% (min. 4 s)Output current10 ToWaiting timemin. 30 ms (100 V AC); 10 A (24 V DC)Residual ripplemax. 50 mVrmsPeaksmax. 200 mV p-pProtection unitShort circuit and overload protectionLED indicatorLED (green): OK; LED (red): overload, overheating and short circuitOperation in parallel/in seriesmax. 5 units/max. 2 unitsTrade dataEANFour trillion forty eight billion eight hundred seventy nine million six hundred sixty nine thousand eight hundred twenty fiveeClassTwenty seven million forty nine thousand twoTariff number tariffEighty five million forty four thousand ninetyCountry of originCZPacking unitOne |
| Degree of efficiency | 92.8% (110 V AC); 94.3% (230 V AC) |
| Tariff number tariff | Eighty five million forty four thousand ninety |
| Input fuse (internal) | 6.3 A (T) |
| Inrush current after 1 ms | max. 13 To |
| Operation in parallel/in series | max. 5 units/max. 2 units |
| Dimensions height × width × fund | 123 x 65 x 138 mm |
Product Description
Emparro 10-100-240/24 SScrew mounting
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
