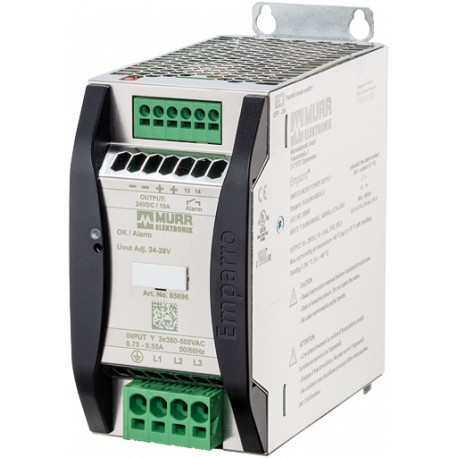

85696 MURRELEKTRONIK Emparro Power Supply 3-phase IN: 360 500VAC OUT: 24-28V/10ADC
$0.00USD
4943 in stock
Key Specifications
EAN:4048879669016
Ripple:max. 20 mVrms
Spikes:max. 50 mV p-p
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879669016 |
| Ripple | max. 20 mVrms |
| Spikes | max. 50 mV p-p |
| eClass | 27049002 |
| Art.No.: | 85696 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47 |
| Connection | Push-In spring clamp terminals |
| Efficiency | 93.7% (3 × 400 V AC); 93.2% (3 × 480 V AC) |
| Protection | IP20 |
| LED display | LED (green): OK; LED (red): overload, overheating or short-circuit |
| Power Boost | Iout N × 150% (min. 5 s) |
| Power factor | 0.66 (3 × 500 V AC) |
| Input current | 0.75 A (3 × 360 V AC); 0.55 A (3 × 500 V AC) |
| Input voltage | 3 × 324...572 V AC/450...745 V DC |
| Output current | 12 A (45 °C); 10 A (60 °C); 7 A (70 °C) |
| Output voltage | 24 V DC (SELV), ±1%; 24...28 V adjustable |
| Packaging unit | 1 |
| Mounting method | screw fixing |
| Unit protection | Short-circuit and overload protected, permanently by 20% (to 45 °C) |
| Relative humidity | 5...95%, no condensation |
| Temperature range | -40...+70 °C, ...+70 °C derating (storage temperature -40...+85 °C) |
| country of origin | CZ |
| Alternative product: | Product ComparisonINPUT: 3 × 324...572 V AC / 450...745 V DCOUTPUT: 24...28 V DCCurrent: 10 AInputInput voltage3 × 324...572 V AC/450...745 V DCInput current0.75 A (3 × 360 V AC); 0.55 A (3 × 500 V AC)Inrush current after 1 msmax. 9.0 A (3 × 500 V AC)Power factor0.66 (3 × 500 V AC)Frequency50...60 HzInput fuse (internal)3 × 6.3 A (T)General dataStandardsEN 60950-1, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47Relative humidity5...95%, no condensationProtectionIP20Efficiency93.7% (3 × 400 V AC); 93.2% (3 × 480 V AC)Dimensions H × W × D143×65×143 mmConnectionPush-In spring clamp terminalsMounting methodscrew fixingTemperature range-40...+70 °C, ...+70 °C derating (storage temperature -40...+85 °C)OutputOutput voltage24 V DC (SELV), ±1%; 24...28 V adjustablePower BoostIout N × 150% (min. 5 s)Output current12 A (45 °C); 10 A (60 °C); 7 A (70 °C)Mains failure bridging timemin. 45 ms (3 × 500 V AC); 10 A (24 V DC)Ripplemax. 20 mVrmsSpikesmax. 50 mV p-pUnit protectionShort-circuit and overload protected, permanently by 20% (to 45 °C)LED displayLED (green): OK; LED (red): overload, overheating or short-circuitParallel usage/serial usagemax. 3 unitsCommercial datacountry of originCZcustoms tariff number85044090EAN4048879669016eClass27049002Packaging unit1 |
| Input fuse (internal) | 3 × 6.3 A (T) |
| customs tariff number | 85044090 |
| Dimensions H × W × D | 143×65×143 mm |
| Inrush current after 1 ms | max. 9.0 A (3 × 500 V AC) |
| Mains failure bridging time | min. 45 ms (3 × 500 V AC); 10 A (24 V DC) |
| Parallel usage/serial usage | max. 3 units |
Product Description
Emparro Schaltnetzteil 3-phaseIN: 360 - 500VAC OUT: 24-28V/10ADC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
