85677

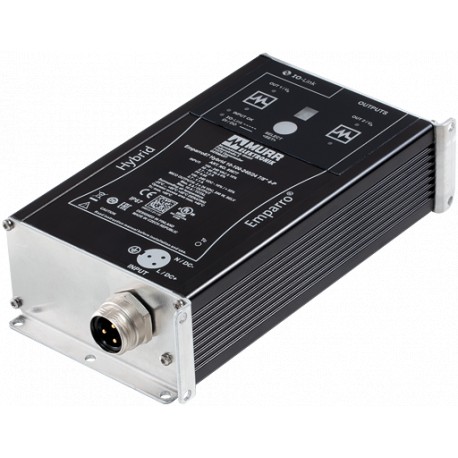

85677 MURRELEKTRONIK Emparro67 Hybrid 10-100-240/24 7/8" 4-P
$0.00USD
3665 in stock
Key Specifications
EAN:4048879778350
MTBF:430 000 h
Ripple:max. 10 mV eff/rms
Spikes:max. 150 mV ss/pp
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879778350 |
| MTBF | 430 000 h |
| Ripple | max. 10 mV eff/rms |
| Spikes | max. 150 mV ss/pp |
| eClass | 27049002 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2 |
| Connection | 7/8" (male), 3-pole |
| Efficiency | 91.6% (115 V AC); 92.8% (230 V AC) |
| Protection | IP67 |
| LED display | LED (green): OK; LED (red): overload, overheating or short-circuit |
| Power factor | 0.88 (230 V AC) |
| Input current | 1.2 A (240 V AC) |
| Input voltage | 90...265 V AC/90...265 V DC |
| Output current | max. 8 A (per channel), max. 10 A (total) |
| Output voltage | 24 V DC (SELV), ±1%; 24...28 V adjustable |
| Packaging unit | 1 |
| Mounting method | 6 hole screw mounting |
| No. of channels | 2× MICO (Over current protection device) |
| Unit protection | Short-circuit, overload and temperature |
| Relative humidity | 4...100% |
| Temperature range | -25...+50 °C, ...+80 °C derating (storage temperature -25...+85 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 216×110×53 mm |
| Input fuse (internal) | 6.3 A (T) |
| customs tariff number | 85044090 |
| Inrush current after 1 ms | max. 5.9 A (230 V AC) |
| Mains failure bridging time | min. 20 ms (230 V AC) |
| Parallel usage/serial usage | no |
Product Description
EMPARRO IP67 Power Supply 1-phaseOUT: 24VDC 10A - 7/8" 4P - SELV
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
