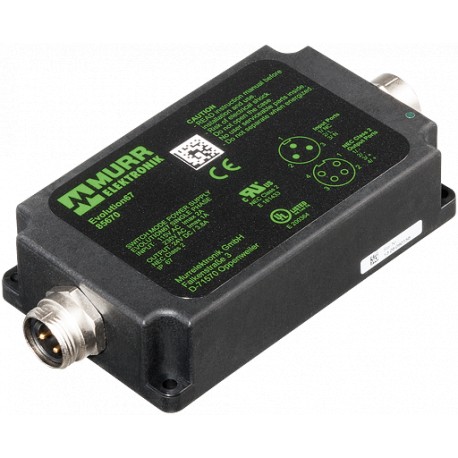

85670 MURRELEKTRONIK EVOLUTION67 power supply 1-phase IN: 90...264VAC OUT: 24V/3,8A
$0.00USD
4265 in stock
Key Specifications
EAN:4048879400992
Ripple:max. 240 mVrms
Spikes:max. 240 mV p-p
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879400992 |
| Ripple | max. 240 mVrms |
| Spikes | max. 240 mV p-p |
| eClass | 27049002 |
| Weight: | 0.85 kg |
| Art.No.: | 85670 |
| Frequency | 50...60 Hz |
| Standards | (IEC/UL/EN 60950-1 NEC Class 2), (EN 61204-3), (EN 55011 A), (EN 61000-3-2) |
| Connection | IN: 7/8'', 3-pole; OUT: 7/8", 4-pole |
| Efficiency | 90% |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | LED (green): OK |
| Input current | 2 A (115 V AC); 1 A (240 V AC) |
| Input voltage | 90...264 V AC |
| Output current | 3.8 A (+50 °C); 2.3 A (+70 °C) |
| Output voltage | 24 V DC (SELV), ±2% |
| Packaging unit | 1 |
| Mounting method | screw fixing, M5 |
| Unit protection | Short-circuit and overload protected |
| Relative humidity | 5...95%, no condensation |
| Temperature range | -25...+70 °C (storage temperature -40...+85 °C) |
| country of origin | DE |
| customs tariff number | 85044090 |
| Dimensions H × W × D | 85×170×35 mm |
| Primary fusing external | max. 10 A (C) |
| Mains failure bridging time | min. 50 ms (230 V AC); 3.8 A (24 V DC) |
